LTC7840IUFD#PBF
DUAL PHASE/OUTPUT NON-SYNCH BOOSManufacturer: Analog Devices Inc.
Categories: DC DC Switching Controllers
Quality Control: Learn More
Boost Regulator Positive Output Step-Up DC-DC Controller IC 28-QFN (4x5)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |

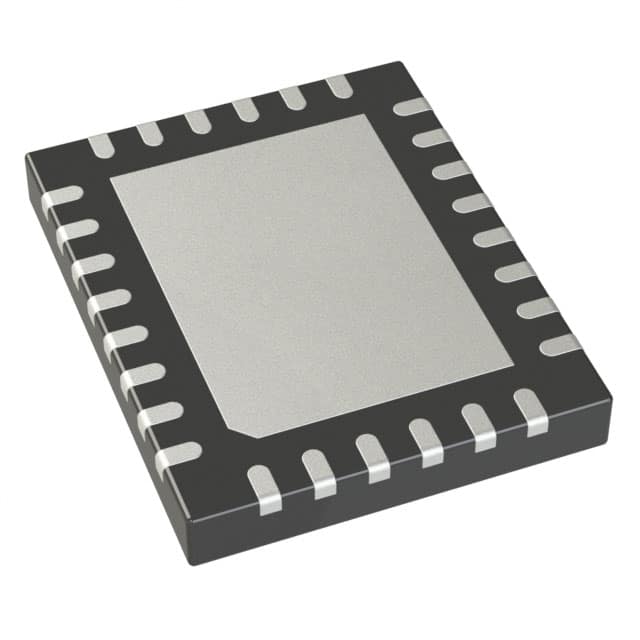

| Package / Case | 28-WFQFN Exposed Pad |
| Output Type | PWM |
| Mounting Type | Surface Mount |
| Function | Step-Up |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 50kHz ~ 425kHz |
| Topology | Boost |
| Voltage - Supply (Vcc/Vdd) | 5.5V ~ 60V |
| Supplier Device Package | 28-QFN (4x5) |
| Synchronous Rectifier | No |
| Control Features | Current Limit, Enable, Frequency Control, Power Good |
| Serial Interfaces | - |
| Output Phases | 2 |
| Duty Cycle (Max) | 96% |
| Clock Sync | Yes |
| Number of Outputs | 2 |
