LTC3892EFE-1#PBF
IC REG CTRLR BUCK 28TSSOPManufacturer: Analog Devices Inc.
Categories: DC DC Switching Controllers
Quality Control: Learn More
The Analog Devices Inc. LTC3892EFE-1-PBF is a high-performance, dual-output, synchronous buck controller. This device features a wide input voltage range of 4.5V to 60V, making it suitable for demanding applications. It offers a selectable switching frequency from 105kHz to 835kHz, with a typical operating frequency of 350kHz to 535kHz, and a maximum duty cycle of 99%. Control features include current limit, enable, frequency control, power good, soft start, and tracking. The LTC3892EFE-1-PBF is designed for step-down DC-DC conversion and includes integrated synchronous rectifier drivers. It is supplied in a 28-TSSOP-EP package with an exposed pad for enhanced thermal performance, suitable for surface mount applications. This component is commonly utilized in automotive, industrial, and telecommunications power solutions.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |

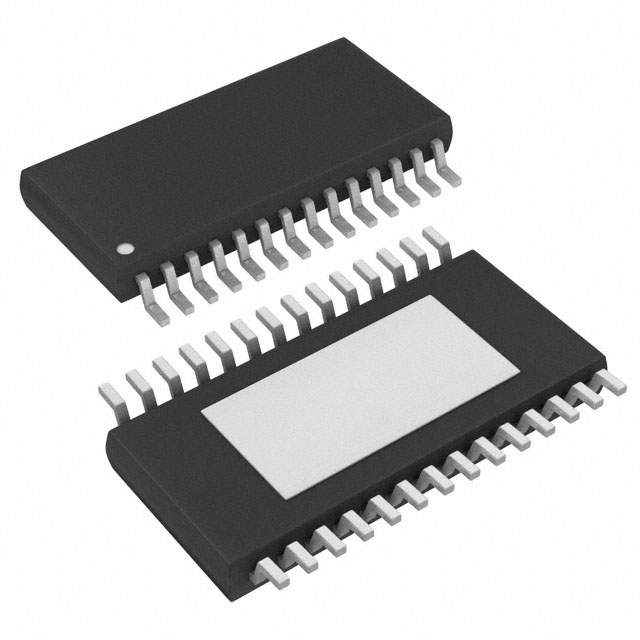

| Package / Case | 28-TSSOP (0.173"", 4.40mm Width) Exposed Pad |
| Output Type | Transistor Driver |
| Mounting Type | Surface Mount |
| Function | Step-Down |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 105kHz ~ 835kHz, 350kHz ~ 535kHz |
| Topology | Buck |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 60V |
| Supplier Device Package | 28-TSSOP-EP |
| Synchronous Rectifier | Yes |
| Control Features | Current Limit, Enable, Frequency Control, Power Good, Soft Start, Tracking |
| Serial Interfaces | - |
| Output Phases | 2 |
| Duty Cycle (Max) | 99% |
| Clock Sync | No |
| Number of Outputs | 2 |
