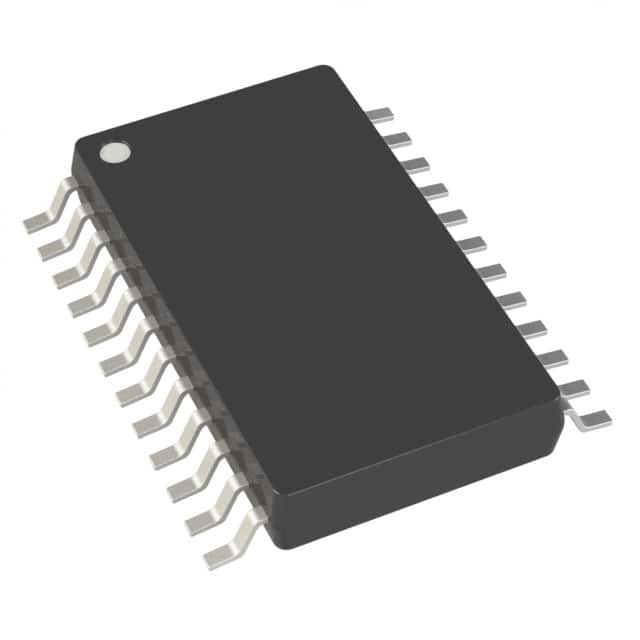

LTC3862HFE#TRPBF
IC REG CTRLR BOOST/SEPIC 24TSSOPManufacturer: Analog Devices Inc.
Categories: DC DC Switching Controllers
Quality Control: Learn More
Analog Devices Inc. LTC3862HFE-TRPBF is a versatile dual-output DC-DC controller IC designed for Boost and SEPIC topologies. This component supports positive output configurations and is capable of step-up and step-up/step-down voltage regulation. Featuring a wide input voltage range of 4V to 36V, it operates with a switching frequency adjustable from 75kHz to 500kHz. The LTC3862HFE-TRPBF includes advanced control features such as Enable, Frequency Control, Phase Control, and Soft Start, contributing to stable system operation. Its high maximum duty cycle of 96% is beneficial for efficient power conversion. Packaged in a 24-TSSOP (Exposed Pad) on tape and reel, this device is suitable for surface mount applications. The component's clock synchronization capability and dual output phases make it well-suited for demanding applications in industries such as automotive, industrial automation, and telecommunications. The operating temperature range is -40°C to 150°C (TJ).
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 24-TSSOP (0.173"", 4.40mm Width) Exposed Pad |
| Output Type | Transistor Driver |
| Mounting Type | Surface Mount |
| Function | Step-Up, Step-Up/Step-Down |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 75kHz ~ 500kHz |
| Topology | Boost, SEPIC |
| Voltage - Supply (Vcc/Vdd) | 4V ~ 36V |
| Supplier Device Package | 24-TSSOP |
| Synchronous Rectifier | No |
| Control Features | Enable, Frequency Control, Phase Control, Soft Start |
| Serial Interfaces | - |
| Output Phases | 2 |
| Duty Cycle (Max) | 96% |
| Clock Sync | Yes |
| Number of Outputs | 2 |
