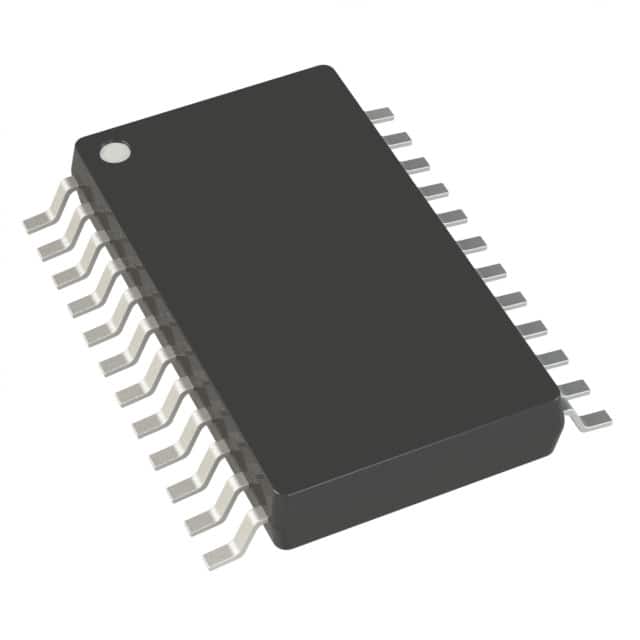

LTC3862EFE#TRPBF
IC REG CTRLR BOOST/SEPIC 24TSSOPManufacturer: Analog Devices Inc.
Categories: DC DC Switching Controllers
Quality Control: Learn More
The Analog Devices Inc. LTC3862EFE-TRPBF is a versatile DC-DC controller IC supporting Boost and SEPIC topologies. This device features positive output configurations and can drive two output phases. Key control features include Enable, Frequency Control, Phase Control, and Soft Start, enabling precise regulation. With a wide operating voltage range from 4V to 36V and a maximum duty cycle of 96%, it is suitable for demanding applications. The switching frequency is adjustable from 75kHz to 500kHz, with clock synchronization capabilities. This component is housed in a 24-TSSOP (0.173", 4.40mm Width) Exposed Pad package and is supplied on tape and reel. Typical applications include power supplies for automotive, industrial, and medical equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 24-TSSOP (0.173"", 4.40mm Width) Exposed Pad |
| Output Type | Transistor Driver |
| Mounting Type | Surface Mount |
| Function | Step-Up, Step-Up/Step-Down |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 75kHz ~ 500kHz |
| Topology | Boost, SEPIC |
| Voltage - Supply (Vcc/Vdd) | 4V ~ 36V |
| Supplier Device Package | 24-TSSOP |
| Synchronous Rectifier | No |
| Control Features | Enable, Frequency Control, Phase Control, Soft Start |
| Serial Interfaces | - |
| Output Phases | 2 |
| Duty Cycle (Max) | 96% |
| Clock Sync | Yes |
| Number of Outputs | 2 |
