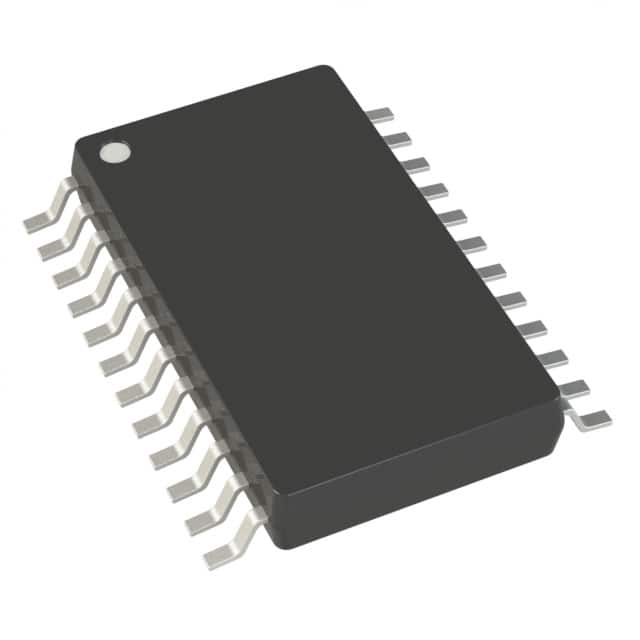

LTC3862EFE#PBF
IC REG CTRLR BOOST/SEPIC 24TSSOPManufacturer: Analog Devices Inc.
Categories: DC DC Switching Controllers
Quality Control: Learn More
Analog Devices Inc. LTC3862EFE-PBF is a dual output step-up or step-up/step-down DC-DC controller. This device features a 4V to 36V supply voltage range and a maximum duty cycle of 96%. The switching frequency is adjustable from 75kHz to 500kHz. Control features include enable, frequency control, phase control, and soft start. The LTC3862EFE-PBF supports synchronous rectification and is packaged in a 24-TSSOP (0.173", 4.40mm Width) Exposed Pad. This component is suitable for applications in automotive, industrial, and communication systems. The part is supplied in a tube.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 24-TSSOP (0.173"", 4.40mm Width) Exposed Pad |
| Output Type | Transistor Driver |
| Mounting Type | Surface Mount |
| Function | Step-Up, Step-Up/Step-Down |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 75kHz ~ 500kHz |
| Topology | Boost, SEPIC |
| Voltage - Supply (Vcc/Vdd) | 4V ~ 36V |
| Supplier Device Package | 24-TSSOP |
| Synchronous Rectifier | No |
| Control Features | Enable, Frequency Control, Phase Control, Soft Start |
| Serial Interfaces | - |
| Output Phases | 2 |
| Duty Cycle (Max) | 96% |
| Clock Sync | Yes |
| Number of Outputs | 2 |
