LTC3829IFE#WPBF
3-PHASE, 1X OUT SYNC BUCK DC/DCManufacturer: Analog Devices Inc.
Categories: DC DC Switching Controllers
Quality Control: Learn More

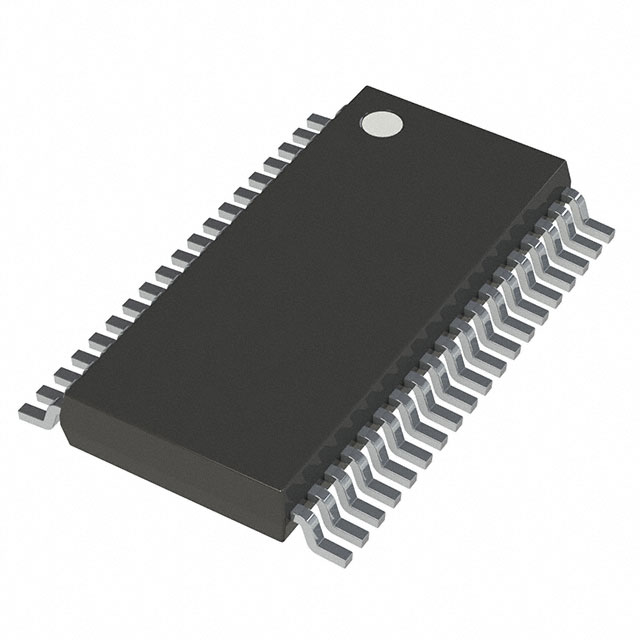

Buck Regulator Positive Output Step-Down DC-DC Controller IC 38-TSSOP-EP
Additional Information
Series: PolyPhase®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 38-TFSOP (0.173"", 4.40mm Width) Exposed Pad |
| Output Type | Transistor Driver |
| Mounting Type | Surface Mount |
| Function | Step-Down |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 250kHz ~ 770kHz |
| Topology | Buck |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 38V |
| Supplier Device Package | 38-TSSOP-EP |
| Synchronous Rectifier | Yes |
| Control Features | Current Limit, Enable, Frequency Control, Power Good, Soft Start, Tracking |
| Serial Interfaces | - |
| Output Phases | 3 |
| Duty Cycle (Max) | 94% |
| Clock Sync | No |
| Number of Outputs | 3 |
