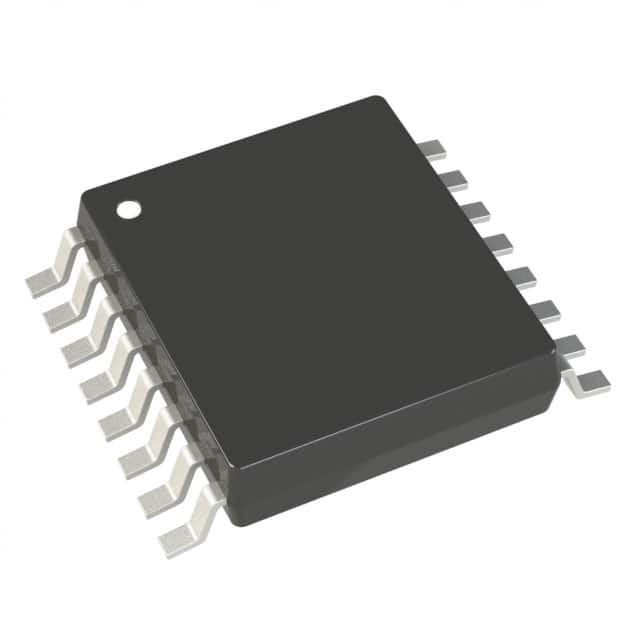

LTC3812EFE-5#PBF
IC REG CTRLR BUCK 16TSSOPManufacturer: Analog Devices Inc.
Categories: DC DC Switching Controllers
Quality Control: Learn More
Analog Devices Inc. LTC3812EFE-5-PBF is a high-performance, 1-phase step-down DC-DC controller. This buck regulator features positive output configuration and operates from a 4.35V to 14V supply voltage. It is designed with essential control features including Enable, Power Good, and Soft Start. The component is housed in a 16-TSSOP-EP package with an exposed pad, suitable for surface mounting. The LTC3812EFE-5-PBF utilizes a transistor driver for its output stage and incorporates a synchronous rectifier for improved efficiency. This controller is ideal for applications in telecommunications, industrial power, and consumer electronics requiring efficient voltage regulation. The operating temperature range is -40°C to 125°C (TJ).
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 16-TSSOP (0.173"", 4.40mm Width) Exposed Pad |
| Output Type | Transistor Driver |
| Mounting Type | Surface Mount |
| Function | Step-Down |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | - |
| Topology | Buck |
| Voltage - Supply (Vcc/Vdd) | 4.35V ~ 14V |
| Supplier Device Package | 16-TSSOP-EP |
| Synchronous Rectifier | Yes |
| Control Features | Enable, Power Good, Soft Start |
| Serial Interfaces | - |
| Output Phases | 1 |
| Duty Cycle (Max) | - |
| Clock Sync | No |
| Number of Outputs | 1 |
