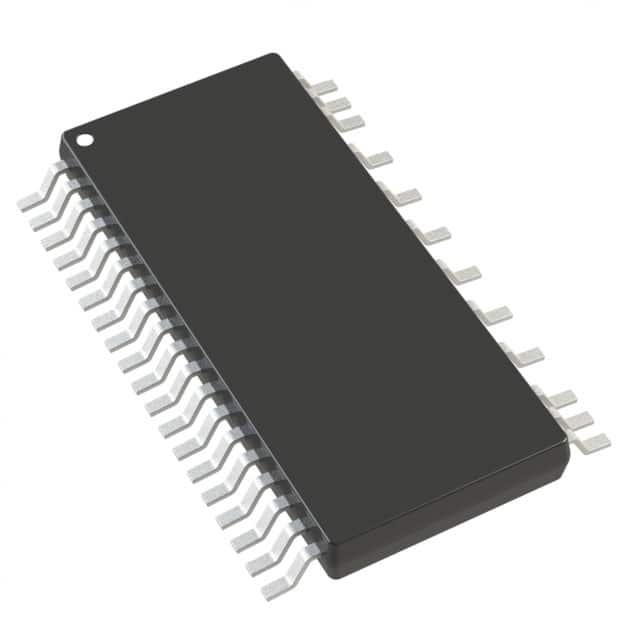

LTC3779HFE#TRPBF
IC REG CTRLR BUCK-BOOST 38-TSSOPManufacturer: Analog Devices Inc.
Categories: DC DC Switching Controllers
Quality Control: Learn More
The Analog Devices Inc. LTC3779HFE-TRPBF is a high-performance buck-boost DC-DC controller designed for step-up and step-down voltage regulation. This component supports a wide input voltage range from 4.5V to 150V and features a single positive output configuration. The controller operates with a switching frequency adjustable from 50kHz to 600kHz, enabling efficient power conversion. Key control features include current limiting, power good indication, and soft-start functionality for smooth power-up sequences. The LTC3779HFE-TRPBF incorporates a synchronous rectifier for enhanced efficiency and is packaged in a 38-TSSOP-EP (38-TFSOP) surface-mount package, supplied on tape and reel. Its robust design makes it suitable for applications in industrial automation, automotive, and data center power supplies. The maximum duty cycle is 90%, and it operates across an ambient temperature range of -40°C to 150°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 38-TFSOP (0.173"", 4.40mm Width) 31 Leads, Exposed Pad |
| Output Type | Transistor Driver |
| Mounting Type | Surface Mount |
| Function | Step-Up, Step-Down |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 50kHz ~ 600kHz |
| Topology | Buck, Boost |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 150V |
| Supplier Device Package | 38-TSSOP-EP |
| Synchronous Rectifier | Yes |
| Control Features | Current Limit, Power Good, Soft Start |
| Serial Interfaces | - |
| Output Phases | 1 |
| Duty Cycle (Max) | 90% |
| Clock Sync | No |
| Number of Outputs | 1 |
