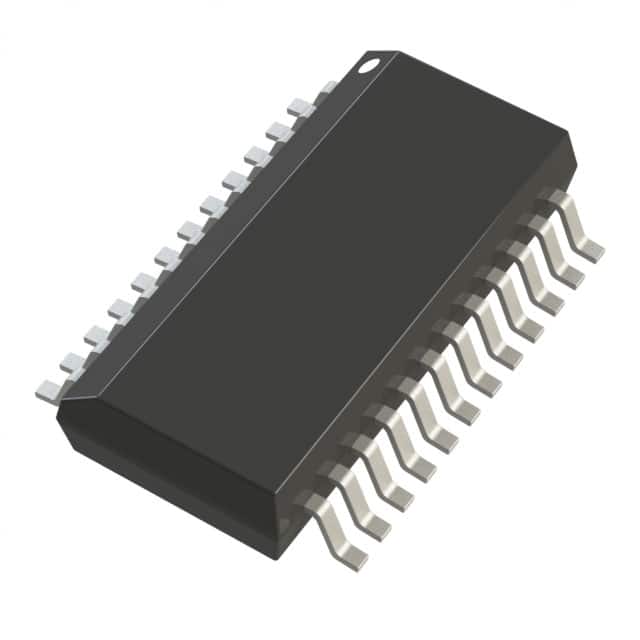

LTC3722IGN-2#TRPBF
IC REG CTRLR FULL-BRIDGE 24SSOPManufacturer: Analog Devices Inc.
Categories: DC DC Switching Controllers
Quality Control: Learn More
The Analog Devices Inc. LTC3722IGN-2-TRPBF is a full-bridge DC-DC controller IC designed for step-up and step-down applications. This component features positive, isolation-capable output configurations and supports dual output phases. Key control features include current limit, ramp, and soft start functionalities, enhancing power management precision. The device operates with a maximum duty cycle of 98.5% and is equipped with clock synchronization capabilities. Its transistor driver output type is suitable for applications requiring efficient power conversion. The LTC3722IGN-2-TRPBF is provided in a 24-SSOP surface mount package and is supplied on tape and reel for automated assembly. This controller is often found in power supplies for industrial automation, telecommunications infrastructure, and advanced medical equipment. The operating temperature range is -40°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 24-SSOP (0.154"", 3.90mm Width) |
| Output Type | Transistor Driver |
| Mounting Type | Surface Mount |
| Function | Step-Up/Step-Down |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive, Isolation Capable |
| Frequency - Switching | - |
| Topology | Full-Bridge |
| Voltage - Supply (Vcc/Vdd) | 3.8V ~ 10.25V |
| Supplier Device Package | 24-SSOP |
| Synchronous Rectifier | Yes |
| Control Features | Current Limit, Ramp, Soft Start |
| Serial Interfaces | - |
| Output Phases | 2 |
| Duty Cycle (Max) | 98.5% |
| Clock Sync | Yes |
| Number of Outputs | 2 |
