LTC3722EGN-1#TRPBF

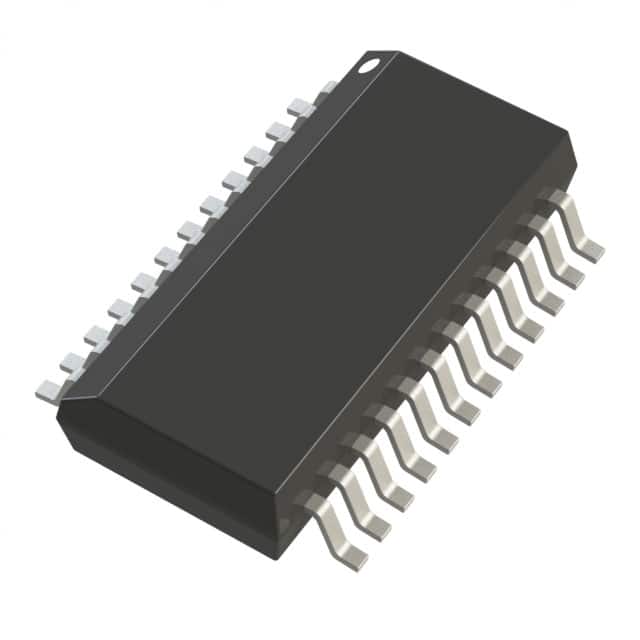

IC REG CTRLR FULL-BRIDGE 24SSOPManufacturer: Analog Devices Inc.
Categories: DC DC Switching Controllers
Quality Control: Learn More
The Analog Devices Inc. LTC3722EGN-1-TRPBF is a full-bridge, current-mode DC-DC controller designed for highly efficient step-up or step-down power conversion. This device features dual output phases, capable of driving external MOSFETs for isolated or non-isolated power supplies. Key control features include programmable current limit, ramp compensation, and soft-start for robust operation. The controller supports a maximum duty cycle of 98.5% and offers clock synchronization for precise timing. Its versatile output configuration allows for positive, isolation-capable outputs. The LTC3722EGN-1-TRPBF operates from a 3.8V to 10.25V supply voltage and is housed in a 24-SSOP package, suitable for surface mounting. This component finds application in power systems requiring flexible and efficient voltage regulation, including industrial automation, telecommunications infrastructure, and battery-powered equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 24-SSOP (0.154"", 3.90mm Width) |
| Output Type | Transistor Driver |
| Mounting Type | Surface Mount |
| Function | Step-Up/Step-Down |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive, Isolation Capable |
| Frequency - Switching | - |
| Topology | Full-Bridge |
| Voltage - Supply (Vcc/Vdd) | 3.8V ~ 10.25V |
| Supplier Device Package | 24-SSOP |
| Synchronous Rectifier | Yes |
| Control Features | Current Limit, Ramp, Soft Start |
| Serial Interfaces | - |
| Output Phases | 2 |
| Duty Cycle (Max) | 98.5% |
| Clock Sync | Yes |
| Number of Outputs | 2 |
