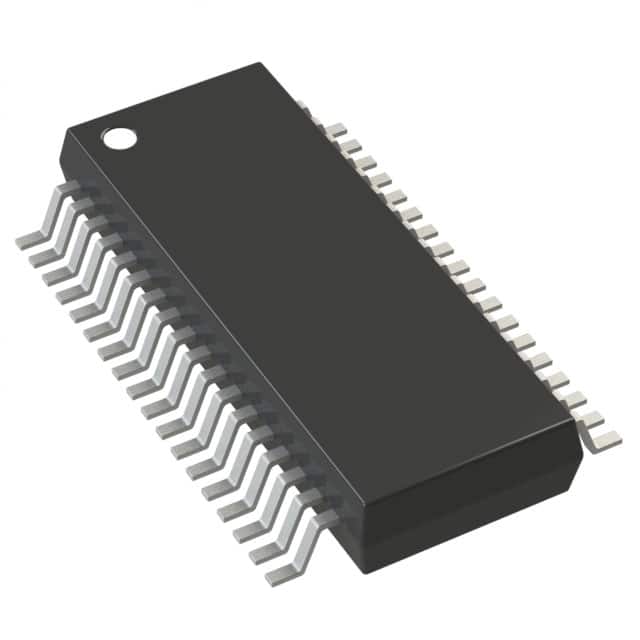

LTC3709EG#TRPBF
IC REG CTRLR BUCK 36SSOPManufacturer: Analog Devices Inc.
Categories: DC DC Switching Controllers
Quality Control: Learn More
Analog Devices Inc. PolyPhase® LTC3709EG-TRPBF is a high-performance, two-phase synchronous buck controller designed for demanding power conversion applications. This device facilitates efficient step-down DC-DC conversion with its robust transistor driver output and support for up to 90% maximum duty cycle. The LTC3709EG-TRPBF features include Enable, Power Good, Soft Start, and Tracking control functions, enabling precise power management. Operating across a wide supply voltage range of 3.9V to 37V, this controller is suitable for industrial, automotive, and data center power supplies. The 36-SSOP package, supplied on tape and reel, ensures efficient surface mount assembly. Its synchronous rectification capability further enhances efficiency, making it a key component for advanced power system designs.
Additional Information
Series: PolyPhase®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 36-SSOP (0.209"", 5.30mm Width) |
| Output Type | Transistor Driver |
| Mounting Type | Surface Mount |
| Function | Step-Down |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | - |
| Topology | Buck |
| Voltage - Supply (Vcc/Vdd) | 3.9V ~ 37V |
| Supplier Device Package | 36-SSOP |
| Synchronous Rectifier | Yes |
| Control Features | Enable, Power Good, Soft Start, Tracking |
| Serial Interfaces | - |
| Output Phases | 2 |
| Duty Cycle (Max) | 90% |
| Clock Sync | No |
| Number of Outputs | 1 |
Request a Quote
