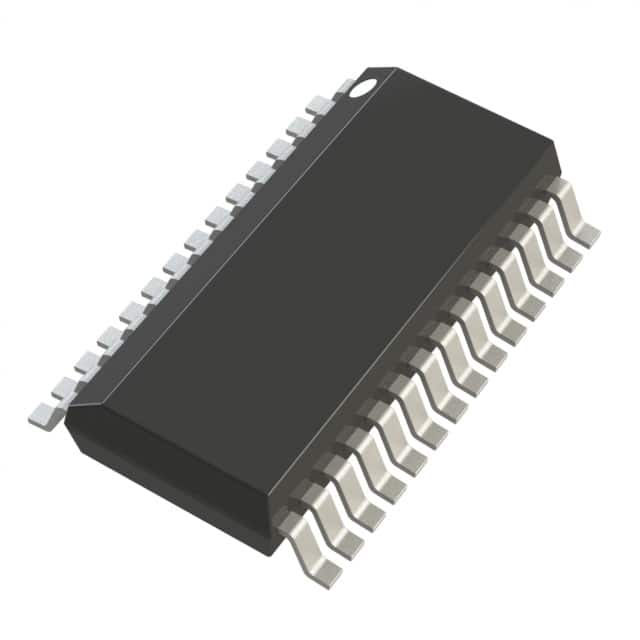

LTC3707EGN-SYNC#TRPBF
IC REG CTRLR BUCK 28SSOPManufacturer: Analog Devices Inc.
Categories: DC DC Switching Controllers
Quality Control: Learn More
Analog Devices Inc. LTC3707EGN-SYNC-TRPBF is a 2-phase, synchronous buck, step-down DC-DC controller. This device features a wide input voltage range of 4.5V to 28V and a maximum duty cycle of 99.4%. It operates at a switching frequency of 220kHz. The LTC3707EGN-SYNC-TRPBF offers flexible control features including Enable, Frequency Control, Power Good, and Soft Start. Its output configuration is positive, and it utilizes a transistor driver for output. The component is supplied in a 28-SSOP package on tape and reel, supporting surface mount installation. This controller is suitable for applications requiring efficient power conversion in sectors such as industrial automation, telecommunications, and automotive systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 28-SSOP (0.154"", 3.90mm Width) |
| Output Type | Transistor Driver |
| Mounting Type | Surface Mount |
| Function | Step-Down |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 220kHz |
| Topology | Buck |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 28V |
| Supplier Device Package | 28-SSOP |
| Synchronous Rectifier | Yes |
| Control Features | Enable, Frequency Control, Power Good, Soft Start |
| Serial Interfaces | - |
| Output Phases | 2 |
| Duty Cycle (Max) | 99.4% |
| Clock Sync | No |
| Number of Outputs | 2 |
