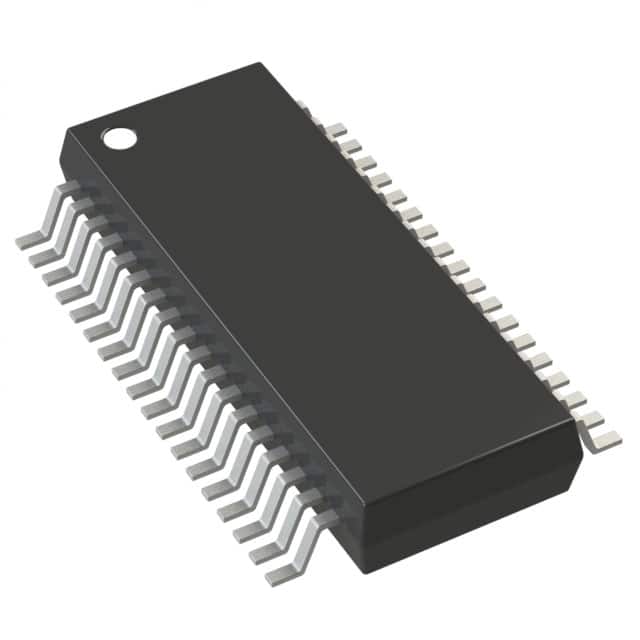

LTC1876EG#TRPBF
IC REG CTRLR BUCK 36SSOPManufacturer: Analog Devices Inc.
Categories: DC DC Switching Controllers
Quality Control: Learn More
Analog Devices Inc. PolyPhase® LTC1876EG-TRPBF is a high-performance, 2-phase synchronous buck controller designed for step-down DC-DC conversion. This device operates from a wide 3.5V to 36V supply voltage, featuring a maximum duty cycle of 99.4% and a switching frequency of 220kHz. The LTC1876EG-TRPBF offers robust control features including Enable, Frequency Control, Power Good, and Soft Start for precise power management. It supports a positive output configuration with transistor driver outputs and is packaged in a 36-SSOP for surface mount applications. This controller is suitable for demanding applications in the telecommunications, industrial, and computing sectors. The component is supplied in Tape & Reel packaging.
Additional Information
Series: PolyPhase®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 36-SSOP (0.209"", 5.30mm Width) |
| Output Type | Transistor Driver |
| Mounting Type | Surface Mount |
| Function | Step-Down |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 220kHz |
| Topology | Buck |
| Voltage - Supply (Vcc/Vdd) | 3.5V ~ 36V |
| Supplier Device Package | 36-SSOP |
| Synchronous Rectifier | No |
| Control Features | Enable, Frequency Control, Power Good, Soft Start |
| Serial Interfaces | - |
| Output Phases | 2 |
| Duty Cycle (Max) | 99.4% |
| Clock Sync | No |
| Number of Outputs | 3 |
