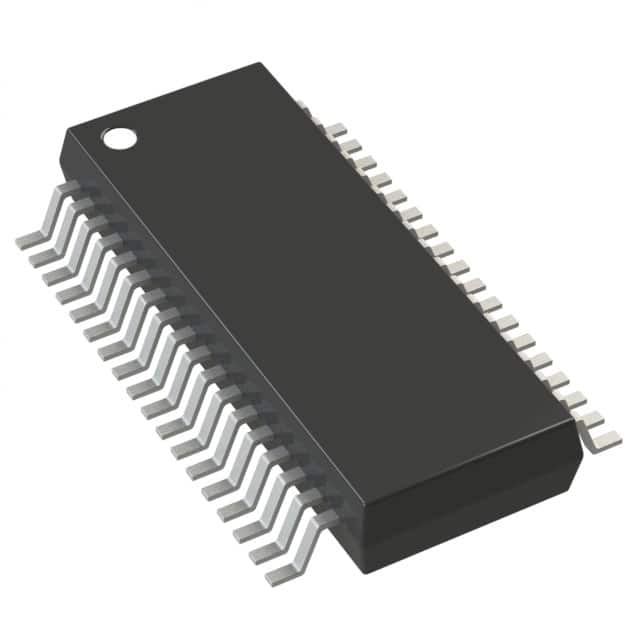

LTC1709EG#TRPBF
IC REG CTRLR BUCK 36SSOPManufacturer: Analog Devices Inc.
Categories: DC DC Switching Controllers
Quality Control: Learn More
Analog Devices Inc. LTC1709EG-TRPBF is a dual-output, synchronous buck controller designed for efficient step-down power conversion. This device operates with a wide input voltage range of 4V to 36V and features adjustable switching frequencies from 140kHz to 310kHz. Its robust control features include enable and soft-start for controlled power sequencing. The output configuration is positive, with two independent output phases, each capable of driving external MOSFETs for high current applications. The LTC1709EG-TRPBF supports a maximum duty cycle of 99.5%, ensuring excellent efficiency even under heavy load conditions. Packaged in a 36-SSOP on tape and reel, this component is suitable for surface mount applications. Its versatility makes it applicable in industries such as industrial automation, telecommunications, and automotive electronics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 36-SSOP (0.209"", 5.30mm Width) |
| Output Type | Transistor Driver |
| Mounting Type | Surface Mount |
| Function | Step-Down |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 140kHz ~ 310kHz |
| Topology | Buck |
| Voltage - Supply (Vcc/Vdd) | 4V ~ 36V |
| Supplier Device Package | 36-SSOP |
| Synchronous Rectifier | Yes |
| Control Features | Enable, Soft Start |
| Serial Interfaces | - |
| Output Phases | 2 |
| Duty Cycle (Max) | 99.5% |
| Clock Sync | No |
| Number of Outputs | 2 |
