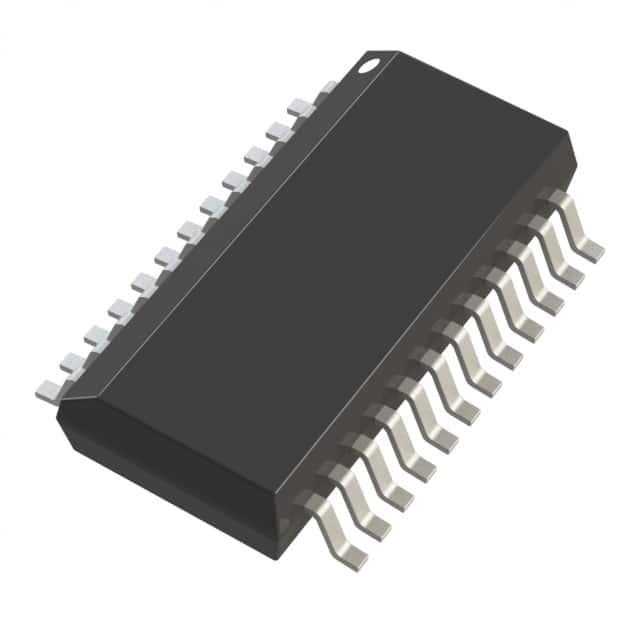

LTC1702AIGN#TRPBF
IC REG CTRLR BUCK 24SSOPManufacturer: Analog Devices Inc.
Categories: DC DC Switching Controllers
Quality Control: Learn More
Analog Devices Inc. LTC1702AIGN-TRPBF is a dual-output, synchronous buck DC-DC controller designed for step-down power conversion. This device features a transistor driver output and supports a positive output configuration with two phases. It operates at a switching frequency of 550kHz, offering a maximum duty cycle of 90%. Key control features include current limit, enable, power good, and soft start functionalities. The LTC1702AIGN-TRPBF is suitable for applications requiring efficient voltage regulation, such as in industrial, telecommunications, and computing systems. It operates from a supply voltage range of 3V to 7V and is packaged in a 24-SSOP for surface mount applications. The operating temperature range is -40°C to 85°C (TA). This component is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 24-SSOP (0.154"", 3.90mm Width) |
| Output Type | Transistor Driver |
| Mounting Type | Surface Mount |
| Function | Step-Down |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 550kHz |
| Topology | Buck |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 7V |
| Supplier Device Package | 24-SSOP |
| Synchronous Rectifier | Yes |
| Control Features | Current Limit, Enable, Power Good, Soft Start |
| Serial Interfaces | - |
| Output Phases | 2 |
| Duty Cycle (Max) | 90% |
| Clock Sync | No |
| Number of Outputs | 2 |
