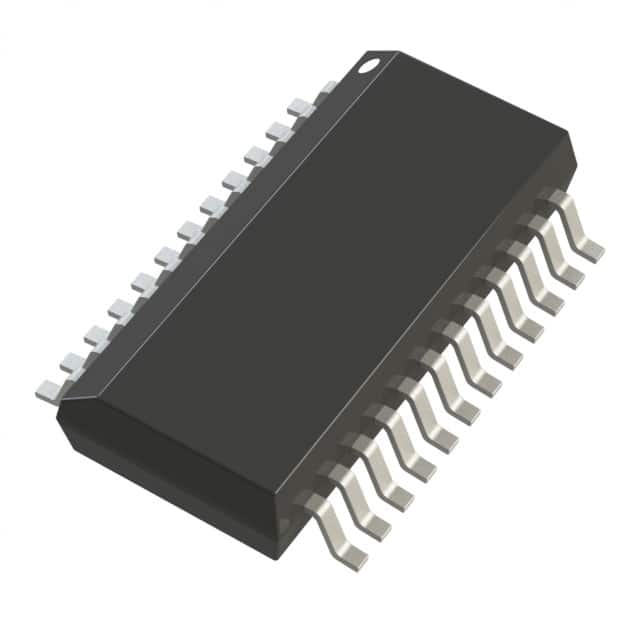

LTC1436AEGN#TRPBF
IC REG CTRLR BUCK 24SSOPManufacturer: Analog Devices Inc.
Categories: DC DC Switching Controllers
Quality Control: Learn More
The Analog Devices Inc. LTC1436AEGN-TRPBF is a versatile buck regulator controller designed for efficient step-down DC-DC conversion. This component features a robust input voltage range of 3.5V to 30V, supporting a maximum duty cycle of 99% and switching frequencies up to 400kHz. Its positive output configuration, driven by a transistor driver with a single output phase, is ideal for applications requiring precise voltage regulation. Key control features include enable, power-on reset, and soft-start functionalities, enhancing system stability. The device operates across a temperature range of -40°C to 85°C and is supplied in a 24-SSOP (0.154", 3.90mm width) package on tape and reel. This controller integrates a synchronous rectifier for improved efficiency and is well-suited for use in various industrial and consumer electronics markets.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 24-SSOP (0.154"", 3.90mm Width) |
| Output Type | Transistor Driver |
| Mounting Type | Surface Mount |
| Function | Step-Down |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | Up to 400kHz |
| Topology | Buck |
| Voltage - Supply (Vcc/Vdd) | 3.5V ~ 30V |
| Supplier Device Package | 24-SSOP |
| Synchronous Rectifier | Yes |
| Control Features | Enable, Power on Reset, Soft Start |
| Serial Interfaces | - |
| Output Phases | 1 |
| Duty Cycle (Max) | 99% |
| Clock Sync | No |
| Number of Outputs | 1 |
