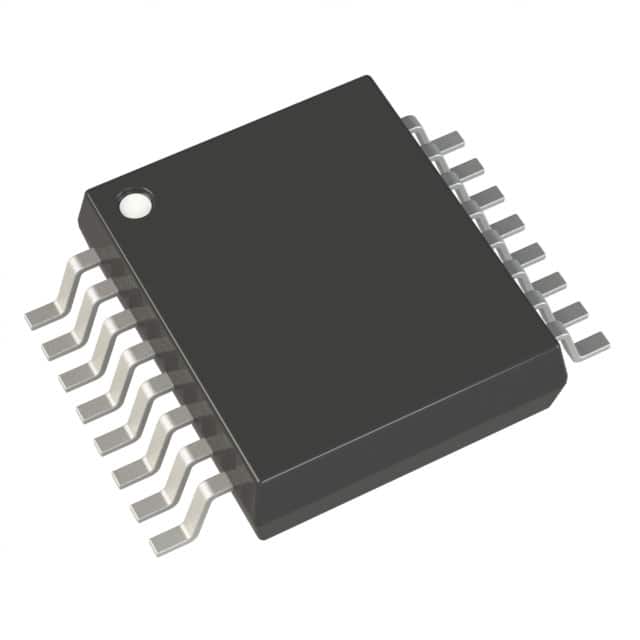

LTC1435IG#TRPBF
IC REG CTRLR BUCK 16SSOPManufacturer: Analog Devices Inc.
Categories: DC DC Switching Controllers
Quality Control: Learn More
The Analog Devices Inc. LTC1435IG-TRPBF is a high-performance, N-channel MOSFET driver buck regulator controller. This device operates as a positive output, step-down DC-DC converter, designed for applications requiring efficient power management. It features a switching frequency up to 400kHz and a maximum duty cycle of 99%, enabling robust performance across a wide range of load conditions. Control features include Enable and Soft Start functionalities, allowing for controlled power-up sequences. The LTC1435IG-TRPBF supports a single output with a transistor driver configuration and incorporates synchronous rectification for enhanced efficiency. Its wide input voltage range of 3.5V to 30V makes it suitable for diverse power supply designs. Packaged in a 16-SSOP (0.209", 5.30mm Width) and supplied in tape and reel, this component is ideal for surface mount applications. The operating temperature range is -40°C to 85°C (TA). This controller is commonly utilized in industrial, telecommunications, and consumer electronics sectors where reliable step-down voltage conversion is critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-SSOP (0.209"", 5.30mm Width) |
| Output Type | Transistor Driver |
| Mounting Type | Surface Mount |
| Function | Step-Down |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | Up to 400kHz |
| Topology | Buck |
| Voltage - Supply (Vcc/Vdd) | 3.5V ~ 30V |
| Supplier Device Package | 16-SSOP |
| Synchronous Rectifier | Yes |
| Control Features | Enable, Soft Start |
| Serial Interfaces | - |
| Output Phases | 1 |
| Duty Cycle (Max) | 99% |
| Clock Sync | No |
| Number of Outputs | 1 |
