LTC1148HVCN-5#PBF
IC REG CTRLR BUCK 14DIPManufacturer: Analog Devices Inc.
Categories: DC DC Switching Controllers
Quality Control: Learn More
The Analog Devices Inc. LTC1148HVCN-5-PBF is a high-voltage, step-down DC-DC controller IC. This component features a transistor driver output and is designed for positive output configurations. It operates as a buck regulator, capable of switching frequencies up to 250kHz. Key control features include current limit and enable functions, with a maximum duty cycle of 100%. The operating temperature range is 0°C to 70°C. This device supports a single output phase and is housed in a 14-PDIP package, suitable for through-hole mounting. The voltage supply range is from 3.5V to 20V. The LTC1148HVCN-5-PBF is utilized in applications requiring efficient voltage conversion, such as power supplies for industrial equipment and consumer electronics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |

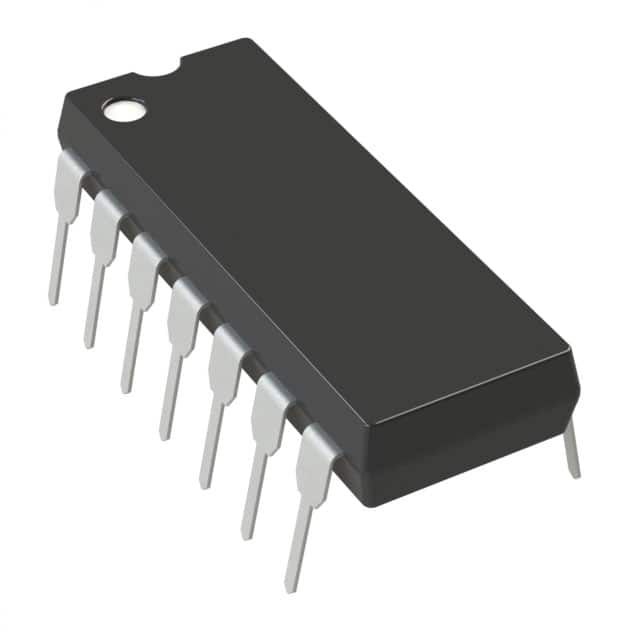

| Package / Case | 14-DIP (0.300"", 7.62mm) |
| Output Type | Transistor Driver |
| Mounting Type | Through Hole |
| Function | Step-Down |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | Up to 250kHz |
| Topology | Buck |
| Voltage - Supply (Vcc/Vdd) | 3.5V ~ 20V |
| Supplier Device Package | 14-PDIP |
| Synchronous Rectifier | Yes |
| Control Features | Current Limit, Enable |
| Serial Interfaces | - |
| Output Phases | 1 |
| Duty Cycle (Max) | 100% |
| Clock Sync | No |
| Number of Outputs | 1 |
