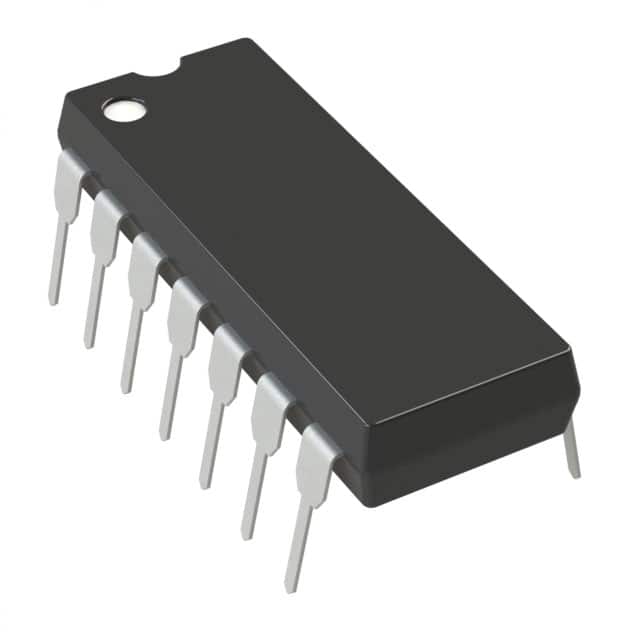

LTC1148HVCN-3.3#PBF
IC REG CTRLR BUCK 14DIPManufacturer: Analog Devices Inc.
Categories: DC DC Switching Controllers
Quality Control: Learn More
Analog Devices Inc. LTC1148HVCN-3-3-PBF is a high-voltage, current-mode, step-down DC-DC controller. This device features a transistor driver output, enabling synchronous rectification for improved efficiency. It operates as a positive output buck regulator with a single output phase. Key control features include current limit and enable functionality. The switching frequency can be set up to 250kHz, with a maximum duty cycle of 100%. This component is designed for through-hole mounting and comes in a 14-PDIP package. The operating temperature range is 0°C to 70°C. The voltage supply range is 3.5V to 20V. The LTC1148HVCN-3-3-PBF is suitable for applications requiring efficient voltage conversion in industrial and communications sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 14-DIP (0.300"", 7.62mm) |
| Output Type | Transistor Driver |
| Mounting Type | Through Hole |
| Function | Step-Down |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | Up to 250kHz |
| Topology | Buck |
| Voltage - Supply (Vcc/Vdd) | 3.5V ~ 20V |
| Supplier Device Package | 14-PDIP |
| Synchronous Rectifier | Yes |
| Control Features | Current Limit, Enable |
| Serial Interfaces | - |
| Output Phases | 1 |
| Duty Cycle (Max) | 100% |
| Clock Sync | No |
| Number of Outputs | 1 |
