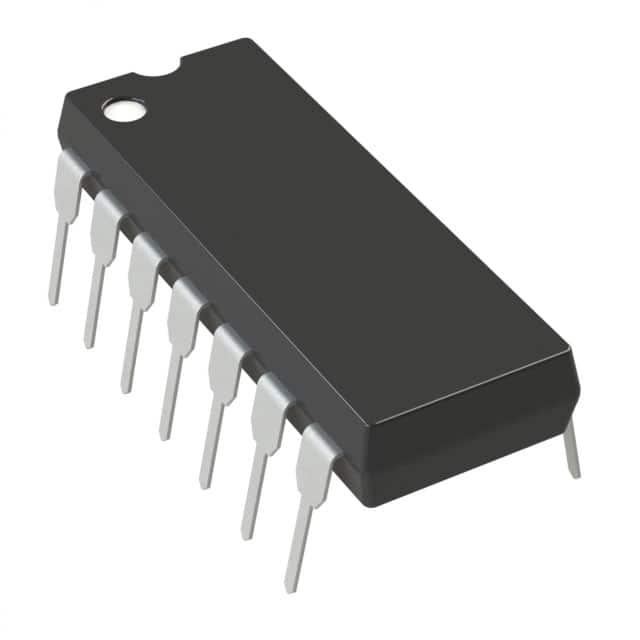

LTC1148CN-3.3#PBF
IC REG CTRLR BUCK 14DIPManufacturer: Analog Devices Inc.
Categories: DC DC Switching Controllers
Quality Control: Learn More
Analog Devices Inc. LTC1148CN-3-3-PBF is a transistor driver output, positive output, step-down DC-DC controller IC. This device operates as a buck topology regulator, offering a single output phase with a maximum duty cycle of 100%. It features current limit and enable control functions, and its switching frequency can reach up to 250kHz. The LTC1148CN-3-3-PBF supports a wide supply voltage range from 3.5V to 20V. Designed for through-hole mounting, it is housed in a 14-PDIP package. This component is suitable for applications in industrial and telecommunications sectors requiring efficient power conversion. The synchronous rectifier is integrated, simplifying external component requirements. It operates within a temperature range of 0°C to 70°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 14-DIP (0.300"", 7.62mm) |
| Output Type | Transistor Driver |
| Mounting Type | Through Hole |
| Function | Step-Down |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | Up to 250kHz |
| Topology | Buck |
| Voltage - Supply (Vcc/Vdd) | 3.5V ~ 20V |
| Supplier Device Package | 14-PDIP |
| Synchronous Rectifier | Yes |
| Control Features | Current Limit, Enable |
| Serial Interfaces | - |
| Output Phases | 1 |
| Duty Cycle (Max) | 100% |
| Clock Sync | No |
| Number of Outputs | 1 |
