LT8708HUHG-1#TRPBF
80V SYNCHRONOUS 4-SWITCH BUCK-BOManufacturer: Analog Devices Inc.
Categories: DC DC Switching Controllers
Quality Control: Learn More

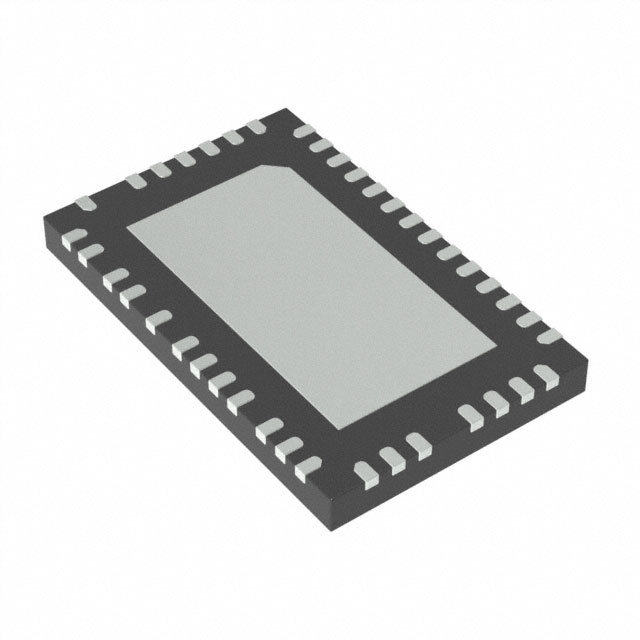

Analog Devices Inc. LT8708HUHG-1-TRPBF is a 4-switch synchronous buck-boost DC-DC controller. This device offers a wide input voltage range from 2.8V to 80V, enabling flexible system design. It supports a positive output configuration with a single output phase, capable of delivering both step-up and step-down voltage conversion. The LT8708HUHG-1-TRPBF operates with a switching frequency selectable between 100kHz and 400kHz, featuring an 80% maximum duty cycle. Its synchronous rectification design enhances efficiency. The component is housed in a 40-QFN (5x8) package with an exposed pad, suitable for surface mounting. This controller is engineered for demanding applications across automotive, industrial, and telecommunications sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 40-WFQFN Exposed Pad |
| Output Type | Transistor Driver |
| Mounting Type | Surface Mount |
| Function | Step-Up/Step-Down |
| Operating Temperature | -40°C ~ 150°C |
| Output Configuration | Positive |
| Frequency - Switching | 100kHz ~ 400kHz |
| Topology | Buck-Boost |
| Voltage - Supply (Vcc/Vdd) | 2.8V ~ 80V |
| Supplier Device Package | 40-QFN (5x8) |
| Synchronous Rectifier | Yes |
| Control Features | - |
| Serial Interfaces | - |
| Output Phases | 2 |
| Duty Cycle (Max) | 80% |
| Clock Sync | Yes |
| Number of Outputs | 1 |
