LT8708EUHG-1#PBF
80V SYNCHRONOUS 4-SWITCH BUCK-BOManufacturer: Analog Devices Inc.
Categories: DC DC Switching Controllers
Quality Control: Learn More

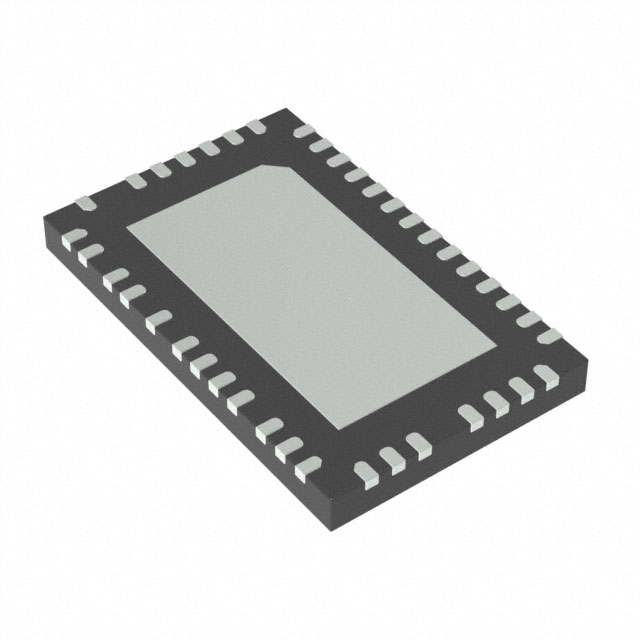

Analog Devices Inc. LT8708EUHG-1-PBF is an 80V synchronous 4-switch buck-boost DC-DC controller. This positive output controller offers step-up and step-down functionality, supporting a wide input voltage range from 2.8V to 80V. Featuring a 40-QFN (5x8) package with an exposed pad for enhanced thermal performance, it operates within a temperature range of -40°C to 125°C. The LT8708EUHG-1-PBF supports clock synchronization and a maximum duty cycle of 80%. Its switching frequency can be programmed between 100kHz and 400kHz. This component is ideal for applications requiring efficient voltage regulation across a broad input range, commonly found in automotive, industrial power supplies, and battery management systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 40-WFQFN Exposed Pad |
| Output Type | Transistor Driver |
| Mounting Type | Surface Mount |
| Function | Step-Up/Step-Down |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Frequency - Switching | 100kHz ~ 400kHz |
| Topology | Buck-Boost |
| Voltage - Supply (Vcc/Vdd) | 2.8V ~ 80V |
| Supplier Device Package | 40-QFN (5x8) |
| Synchronous Rectifier | Yes |
| Control Features | - |
| Serial Interfaces | - |
| Output Phases | 2 |
| Duty Cycle (Max) | 80% |
| Clock Sync | Yes |
| Number of Outputs | 1 |
