LT3790IFE
IC REGULATORManufacturer: Analog Devices Inc.
Categories: DC DC Switching Controllers
Quality Control: Learn More

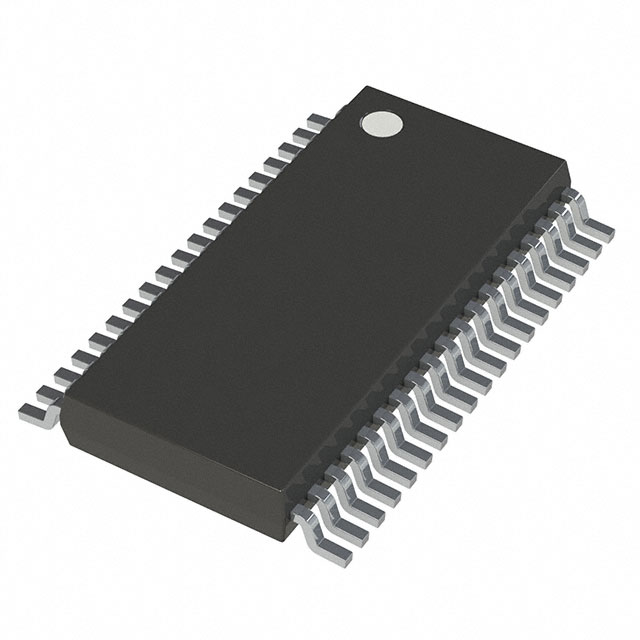

Analog Devices Inc. LT3790IFE is a versatile 38-TSSOP-EP buck-boost DC-DC controller designed for step-up and step-down voltage conversion. This component supports a wide input voltage range of 4.7V to 60V, making it suitable for various power management applications. Featuring a switching frequency adjustable from 200kHz to 700kHz, the LT3790IFE offers efficient operation with its synchronous rectification and dual output phases. Control features include enable and soft-start capabilities for optimized power sequencing. The device is housed in a 38-TFSOP package with an exposed pad for enhanced thermal performance. Its applications span across automotive, industrial, and battery-powered systems requiring flexible and robust voltage regulation.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 38-TFSOP (0.173"", 4.40mm Width) Exposed Pad |
| Output Type | Transistor Driver |
| Mounting Type | Surface Mount |
| Function | Step-Up/Step-Down |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Frequency - Switching | 200kHz ~ 700kHz |
| Topology | Buck-Boost |
| Voltage - Supply (Vcc/Vdd) | 4.7V ~ 60V |
| Supplier Device Package | 38-TSSOP-EP |
| Synchronous Rectifier | Yes |
| Control Features | Enable, Frequency Control, Soft Start |
| Serial Interfaces | - |
| Output Phases | 2 |
| Duty Cycle (Max) | - |
| Clock Sync | Yes |
| Number of Outputs | 2 |
