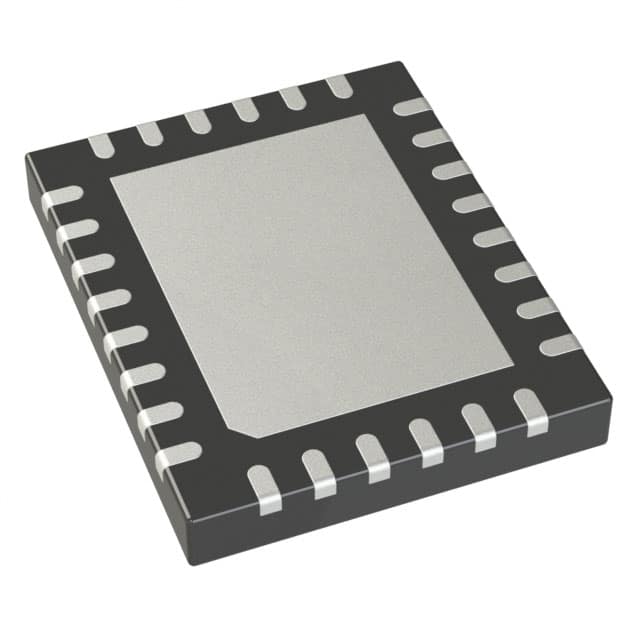

LT3782EUFD#TRPBF
IC REG CTRLR BOOST 28QFNManufacturer: Analog Devices Inc.
Categories: DC DC Switching Controllers
Quality Control: Learn More
Analog Devices Inc. LT3782EUFD-TRPBF is a versatile, high-performance boost regulator controller designed for step-up DC-DC conversion. This 28-QFN (4x5) packaged component features a dual-phase output architecture, enabling efficient power delivery with a maximum duty cycle of 94%. Its adjustable switching frequency range, from 154kHz to 465kHz, allows optimization for various application requirements.
The LT3782EUFD-TRPBF integrates advanced control features including Enable, Reset, and Soft Start, providing granular management of power sequencing. Clock synchronization capabilities further enhance its utility in complex power systems. Operating across a wide supply voltage range of 6V to 40V, this controller is suitable for demanding applications in automotive, industrial, and consumer electronics sectors. The surface mountable design and 28-WFQFN exposed pad package facilitate integration into compact PCB layouts. This component is supplied in Tape & Reel packaging for automated assembly.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 28-WFQFN Exposed Pad |
| Output Type | Transistor Driver |
| Mounting Type | Surface Mount |
| Function | Step-Up |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 154kHz ~ 465kHz |
| Topology | Boost |
| Voltage - Supply (Vcc/Vdd) | 6V ~ 40V |
| Supplier Device Package | 28-QFN (4x5) |
| Synchronous Rectifier | Yes |
| Control Features | Enable, Reset, Soft Start |
| Serial Interfaces | - |
| Output Phases | 2 |
| Duty Cycle (Max) | 94% |
| Clock Sync | Yes |
| Number of Outputs | 2 |
