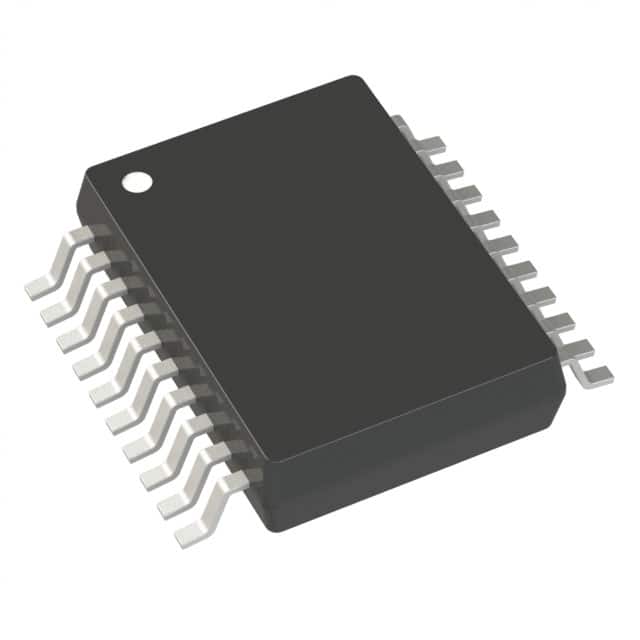

LT1683IG#TRPBF
IC REG CTRLR PUSH-PULL 20SSOPManufacturer: Analog Devices Inc.
Categories: DC DC Switching Controllers
Quality Control: Learn More
Analog Devices Inc. LT1683IG-TRPBF is a push-pull DC-DC controller IC designed for step-up and step-down applications. This device features a single output with positive and negative voltage configurations, operating as a transistor driver. It supports switching frequencies up to 250kHz with a maximum duty cycle of 46%. Control features include enable, frequency control, and soft start, facilitating precise power management. The LT1683IG-TRPBF is supplied in a 20-SSOP package, suitable for surface mount applications. Operating temperature range is -40°C to 125°C (TJ). This component is utilized in various industries, including industrial and telecommunications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-SSOP (0.209"", 5.30mm Width) |
| Output Type | Transistor Driver |
| Mounting Type | Surface Mount |
| Function | Step-Up/Step-Down |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive and Negative |
| Frequency - Switching | 250kHz |
| Topology | Push-Pull |
| Voltage - Supply (Vcc/Vdd) | 7.3V ~ 20V |
| Supplier Device Package | 20-SSOP |
| Synchronous Rectifier | No |
| Control Features | Enable, Frequency Control, Soft Start |
| Serial Interfaces | - |
| Output Phases | 1 |
| Duty Cycle (Max) | 46% |
| Clock Sync | Yes |
| Number of Outputs | 1 |
