LTM8056EY#PBF
DC DC CONVERTER 1.2-48VManufacturer: Analog Devices Inc.
Categories: DC DC Converters
Quality Control: Learn More

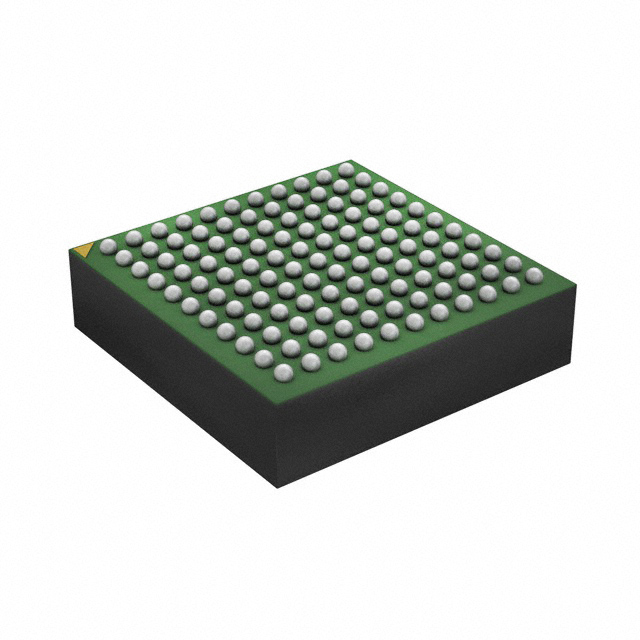

The Analog Devices Inc. LTM8056EY-PBF is a non-isolated Point-of-Load (PoL) DC-DC converter from the µModule® series. This compact 15mm x 15mm x 4.9mm module is designed for efficient power conversion, featuring a wide input voltage range of 5V to 58V and a configurable output voltage from 1.2V to 48V. It delivers a maximum output current of 5.4A with an impressive efficiency of up to 96%. The LTM8056EY-PBF includes Over-Temperature Protection (OTP) and is supplied in a 121-BGA (15x15) package for surface mounting. This component is well-suited for applications within the Information Technology Equipment (ITE) industry.
Additional Information
Series: µModule®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 39 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | OTP |
| Packaging | Tray |
| Package / Case | 121-BBGA Module |
| Size / Dimension | 0.59"" L x 0.59"" W x 0.19"" H (15.0mm x 15.0mm x 4.9mm) |
| Mounting Type | Surface Mount |
| Type | Non-Isolated PoL Module |
| Operating Temperature | -40°C ~ 125°C |
| Applications | ITE (Commercial) |
| Voltage - Input (Max) | 58V |
| Efficiency | 96% |
| Current - Output (Max) | 5.4A |
| Supplier Device Package | 121-BGA (15x15) |
| Voltage - Input (Min) | 5V |
| Voltage - Output 1 | 1.2 ~ 48V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Number of Outputs | 1 |
