LTM8052IV#PBF
DC DC CONVERTER 1.2-24VManufacturer: Analog Devices Inc.
Categories: DC DC Converters
Quality Control: Learn More

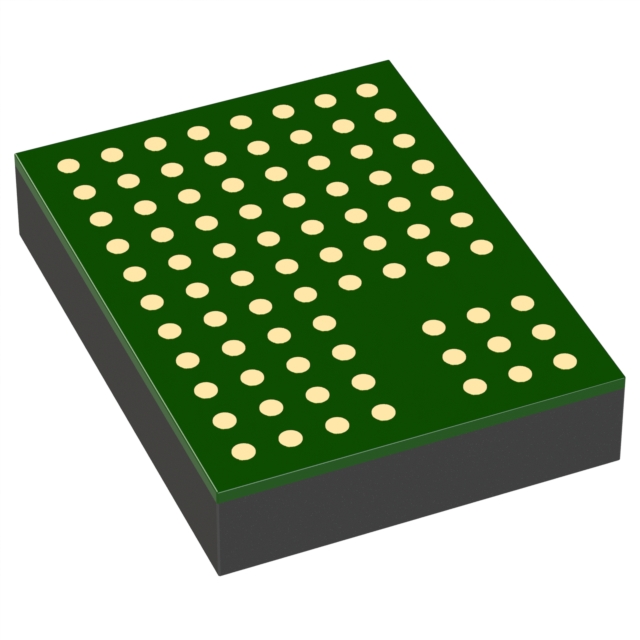

Analog Devices Inc. µModule® LTM8052IV-PBF is a non-isolated Point-of-Load DC-DC converter module designed for surface mount applications. This single-output device features an adjustable output voltage range from 1.2V to 24V, capable of delivering up to 5A. The input voltage range is specified from 6V to 36V. Key features include Under-Voltage Lockout (UVLO). The module is packaged in an 81-LGA (15x11.25) format, measuring 0.59" x 0.44" x 0.11" (15.0mm x 11.3mm x 2.8mm). The operating temperature range is -40°C to 125°C. This component is utilized in Information Technology Equipment (ITE) for commercial applications.
Additional Information
Series: µModule®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | UVLO |
| Packaging | Tray |
| Package / Case | 81-BLGA Module |
| Size / Dimension | 0.59"" L x 0.44"" W x 0.11"" H (15.0mm x 11.3mm x 2.8mm) |
| Mounting Type | Surface Mount |
| Type | Non-Isolated PoL Module |
| Operating Temperature | -40°C ~ 125°C |
| Applications | ITE (Commercial) |
| Voltage - Input (Max) | 36V |
| Efficiency | - |
| Current - Output (Max) | 5A |
| Supplier Device Package | 81-LGA (15x11.25) |
| Voltage - Input (Min) | 6V |
| Voltage - Output 1 | 1.2 ~ 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Number of Outputs | 1 |
