LTM8052EV#PBF
DC DC CONVERTER 1.2-24VManufacturer: Analog Devices Inc.
Categories: DC DC Converters
Quality Control: Learn More

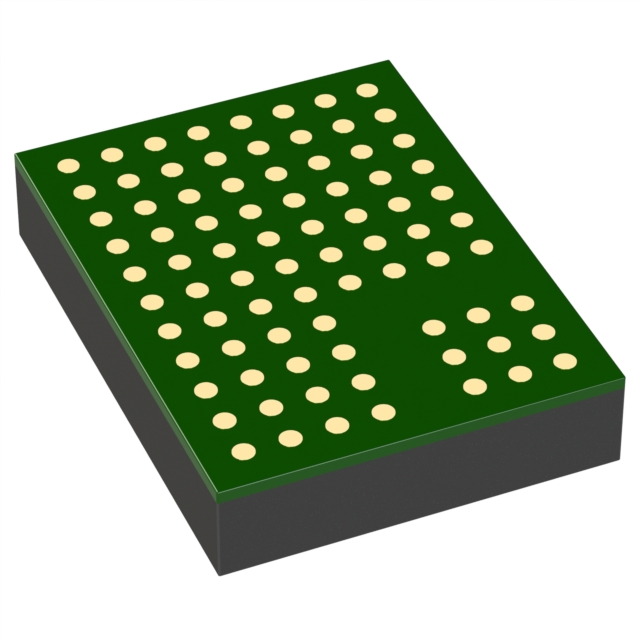

The Analog Devices Inc. LTM8052EV-PBF is a µModule® series non-isolated Point-of-Load DC-DC converter. This component offers a single output with a configurable voltage range of 1.2V to 24V and a maximum output current of 5A. It operates from a wide input voltage range of 6V to 36V. The LTM8052EV-PBF features Under-Voltage Lockout (UVLO) for enhanced system reliability. Its compact 15.0mm x 11.3mm x 2.8mm dimensions, with an 81-LGA package, facilitate surface mount assembly. This solution is suitable for ITE (Commercial) applications and operates across a temperature range of -40°C to 125°C.
Additional Information
Series: µModule®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | UVLO |
| Packaging | Tray |
| Package / Case | 81-BLGA Module |
| Size / Dimension | 0.59"" L x 0.44"" W x 0.11"" H (15.0mm x 11.3mm x 2.8mm) |
| Mounting Type | Surface Mount |
| Type | Non-Isolated PoL Module |
| Operating Temperature | -40°C ~ 125°C |
| Applications | ITE (Commercial) |
| Voltage - Input (Max) | 36V |
| Efficiency | - |
| Current - Output (Max) | 5A |
| Supplier Device Package | 81-LGA (15x11.25) |
| Voltage - Input (Min) | 6V |
| Voltage - Output 1 | 1.2 ~ 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Number of Outputs | 1 |
