LTM8027IY#PBF
DC DC CONVERTER 2.5-24VManufacturer: Analog Devices Inc.
Categories: DC DC Converters
Quality Control: Learn More

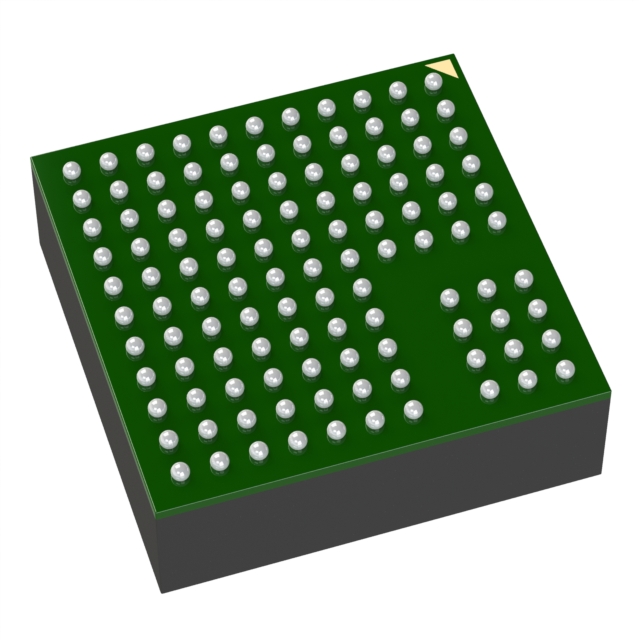

Analog Devices Inc. µModule® series LTM8027IY-PBF is a non-isolated Point-of-Load DC-DC converter. This surface-mount module offers a single output with an adjustable voltage range of 2.5V to 24V and a maximum output current of 4A. It features a wide input voltage range from 4.5V to 60V, with a peak efficiency of 95%. Protection features include short-circuit protection (SCP) and undervoltage lockout (UVLO). The component is housed in a 113-BGA (15x15) package, measuring 15.0mm x 15.0mm x 4.3mm, and operates across an industrial temperature range of -40°C to 125°C. This component is suitable for ITE (Commercial) applications.
Additional Information
Series: µModule®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | SCP, UVLO |
| Packaging | Tray |
| Package / Case | 113-BBGA Module |
| Size / Dimension | 0.59"" L x 0.59"" W x 0.17"" H (15.0mm x 15.0mm x 4.3mm) |
| Mounting Type | Surface Mount |
| Type | Non-Isolated PoL Module |
| Operating Temperature | -40°C ~ 125°C |
| Applications | ITE (Commercial) |
| Voltage - Input (Max) | 60V |
| Efficiency | 95% |
| Current - Output (Max) | 4A |
| Supplier Device Package | 113-BGA (15x15) |
| Voltage - Input (Min) | 4.5V |
| Voltage - Output 1 | 2.5 ~ 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Number of Outputs | 1 |
