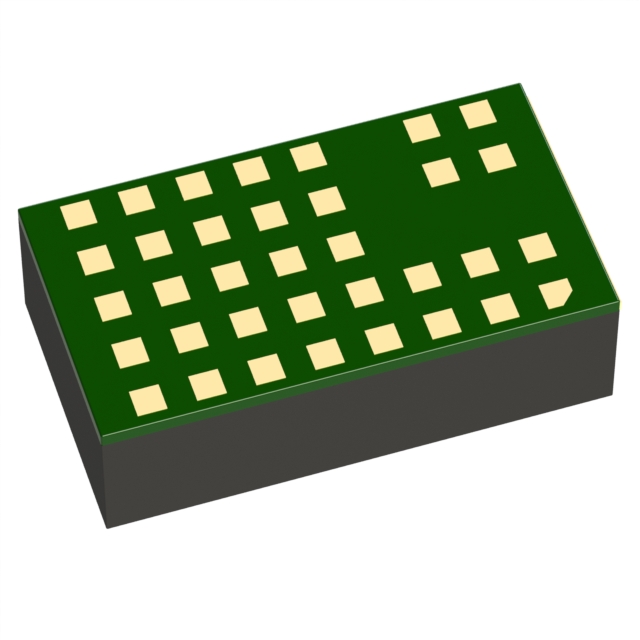

LTM8021EV#PBF
DC DC CONVERTER 0.8-5VManufacturer: Analog Devices Inc.
Categories: DC DC Converters
Quality Control: Learn More
Analog Devices Inc. LTM8021EV-PBF is a non-isolated Point-of-Load (PoL) DC-DC converter from the µModule® series. This highly integrated power module offers a single output with an adjustable voltage range of 0.8V to 5V, capable of delivering up to 500mA. It operates from an input voltage range of 3V to 36V, making it suitable for a variety of power management applications. The LTM8021EV-PBF is designed for surface mount assembly and comes in a compact 35-LGA package. Its dimensions are 11.3mm x 6.3mm x 2.8mm. This component is utilized in ITE (Commercial) applications. The operating temperature range is -40°C to 125°C.
Additional Information
Series: µModule®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Package / Case | 35-BLGA Module |
| Size / Dimension | 0.44"" L x 0.25"" W x 0.11"" H (11.3mm x 6.3mm x 2.8mm) |
| Mounting Type | Surface Mount |
| Type | Non-Isolated PoL Module |
| Operating Temperature | -40°C ~ 125°C |
| Applications | ITE (Commercial) |
| Voltage - Input (Max) | 36V |
| Efficiency | - |
| Current - Output (Max) | 500mA |
| Supplier Device Package | 35-LGA (11.25x6.25) |
| Voltage - Input (Min) | 3V |
| Voltage - Output 1 | 0.8 ~ 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Number of Outputs | 1 |
