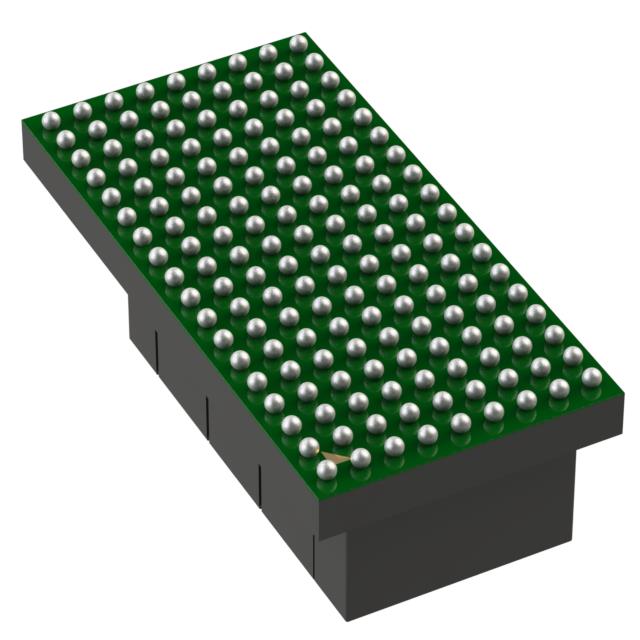

LTM4710EV-1#PBF
LOW VIN QUAD 8A SILENT SWITCHERManufacturer: Analog Devices Inc.
Categories: DC DC Converters
Quality Control: Learn More
Non-Isolated PoL Module DC DC Converter 4 Output 0.5 ~ 3.6V 0.5 ~ 3.6V 0.5 ~ 3.6V 0.5 ~ 3.6V 8A, 8A, 8A, 8A 2.5V - 5.5V Input
Additional Information
Series: LTM®, uModule®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Adjustable Output |
| Packaging | Tray |
| Package / Case | 162-BFLGA Module |
| Size / Dimension | 0.47"" L x 0.24"" W x 0.15"" H (12.0mm x 6.0mm x 3.9mm) |
| Mounting Type | Surface Mount |
| Type | Non-Isolated PoL Module |
| Operating Temperature | -40°C ~ 125°C |
| Applications | ITE (Commercial) |
| Voltage - Input (Max) | 5.5V |
| Approval Agency | - |
| Efficiency | - |
| Current - Output (Max) | 8A, 8A, 8A, 8A |
| Supplier Device Package | 162-LGA (6x12) |
| Voltage - Input (Min) | 2.5V |
| Voltage - Output 1 | 0.5 ~ 3.6V |
| Voltage - Output 2 | 0.5 ~ 3.6V |
| Voltage - Output 3 | 0.5 ~ 3.6V |
| Voltage - Output 4 | 0.5 ~ 3.6V |
| Control Features | - |
| Power (Watts) | 115 W |
| Number of Outputs | 4 |
| Standard Number | - |
