LTM4691IV#PBF
DC DC CONVERTER 1.2V 1.8VManufacturer: Analog Devices Inc.
Categories: DC DC Converters
Quality Control: Learn More

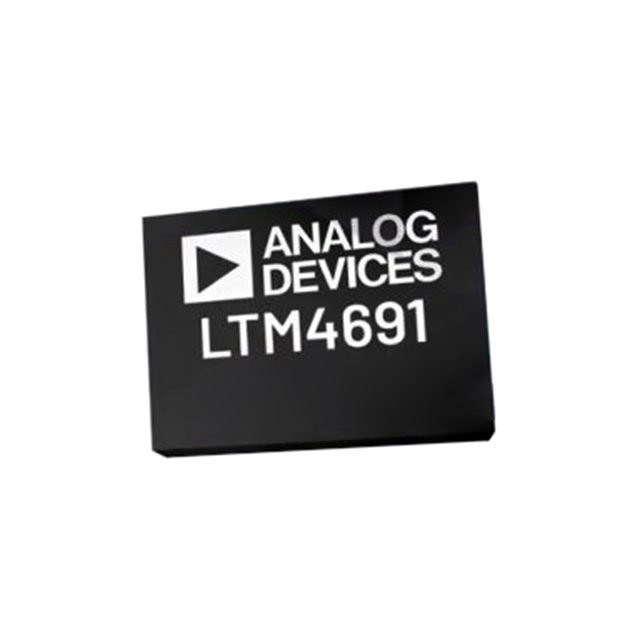

Analog Devices Inc. LTM®, uModule® LTM4691IV-PBF is a non-isolated point-of-load DC-DC converter with two outputs. Each output can be configured for a voltage range of 0.5V to 2.5V, with a maximum output current of 2A per channel. The module operates from an input voltage range of 2.25V to 3.6V. The LTM4691IV-PBF is supplied in a 24-LGA (3x4) package, measuring 3.0mm x 4.0mm x 1.3mm, suitable for surface mounting. This component is designed for applications in the ITE (Commercial) industry and operates within an ambient temperature range of -40°C to 125°C with derating.
Additional Information
Series: LTM®, uModule®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 33 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Package / Case | 24-LFLGA Module |
| Size / Dimension | 0.12"" L x 0.16"" W x 0.05"" H (3.0mm x 4.0mm x 1.3mm) |
| Mounting Type | Surface Mount |
| Type | Non-Isolated PoL Module |
| Operating Temperature | -40°C ~ 125°C (With Derating) |
| Applications | ITE (Commercial) |
| Voltage - Input (Max) | 3.6V |
| Approval Agency | - |
| Efficiency | - |
| Current - Output (Max) | 2A, 2A |
| Supplier Device Package | 24-LGA (3x4) |
| Voltage - Input (Min) | 2.25V |
| Voltage - Output 1 | 0.5 ~ 2.5V |
| Voltage - Output 2 | 0.5 ~ 2.5V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Control Features | - |
| Number of Outputs | 2 |
