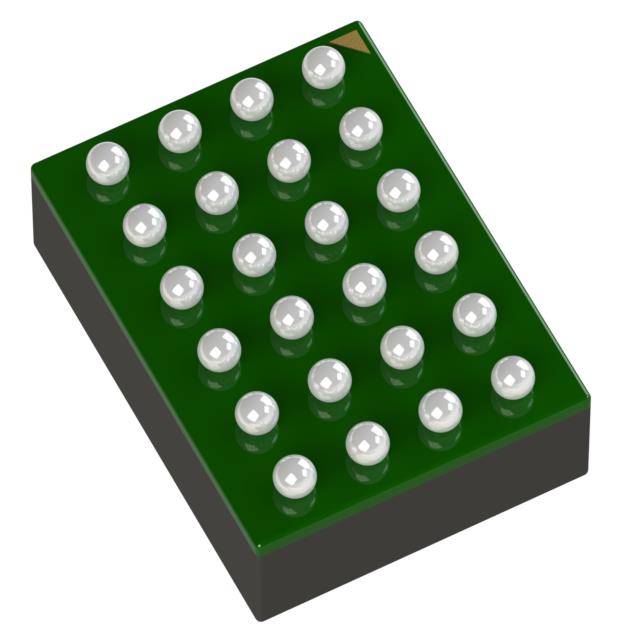

LTM4691EV#PBF
DC DC CONVERTER 1.2V 1.8VManufacturer: Analog Devices Inc.
Categories: DC DC Converters
Quality Control: Learn More
The Analog Devices Inc. LTM4691EV-PBF is a non-isolated Point-of-Load DC-DC converter from the LTM®, uModule® series. This compact component features two outputs, each capable of delivering up to 2A with adjustable voltage ranges from 0.5V to 2.5V. The input voltage range is specified from 2.25V to 3.6V. Designed for surface mount applications, it is housed in a 24-LFLGA Module package with dimensions of 3.0mm x 4.0mm x 1.3mm. This module is suitable for use in ITE (Commercial) applications and operates across a temperature range of -40°C to 125°C with derating. The LTM4691EV-PBF provides efficient power conversion for demanding electronic systems.
Additional Information
Series: LTM®, uModule®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 33 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Package / Case | 24-LFLGA Module |
| Size / Dimension | 0.12"" L x 0.16"" W x 0.05"" H (3.0mm x 4.0mm x 1.3mm) |
| Mounting Type | Surface Mount |
| Type | Non-Isolated PoL Module |
| Operating Temperature | -40°C ~ 125°C (With Derating) |
| Applications | ITE (Commercial) |
| Voltage - Input (Max) | 3.6V |
| Approval Agency | - |
| Efficiency | - |
| Current - Output (Max) | 2A, 2A |
| Supplier Device Package | 24-LGA (3x4) |
| Voltage - Input (Min) | 2.25V |
| Voltage - Output 1 | 0.5 ~ 2.5V |
| Voltage - Output 2 | 0.5 ~ 2.5V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Control Features | - |
| Number of Outputs | 2 |
