LTM4686BEV#PBF
ULTRATHIN DUAL 14A OR SINGLE 28AManufacturer: Analog Devices Inc.
Categories: DC DC Converters
Quality Control: Learn More

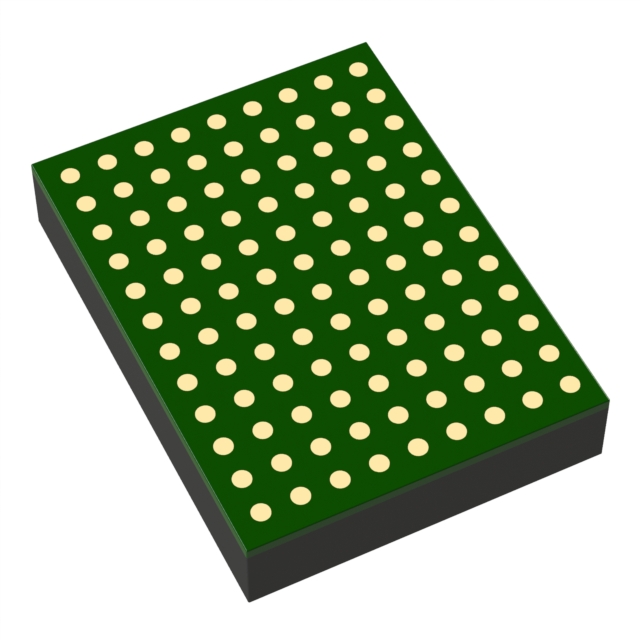

Analog Devices Inc. LTM®, uModule® series LTM4686BEV-PBF is a non-isolated Point-of-Load DC-DC converter module. This ultrathin, dual 14A or single 28A capable module offers a configurable output current of up to 17A. It operates from a 4.5V to 5.75V input range, delivering a selectable output voltage from 0.5V to 3.6V. Key features include adjustable output, load sharing capability, PMBus™ interface for digital control and monitoring, remote on/off, and remote sense functionality. The compact 108-LGA (16x11.9) package measures 16.0mm x 11.9mm x 1.82mm, making it suitable for surface mounting in demanding applications. The LTM4686BEV-PBF is designed for operation across a wide temperature range of -40°C to 125°C and finds application in ITE (Commercial) equipment.
Additional Information
Series: LTM®, uModule®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 39 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Adjustable Output, Load Sharing, PMBus™, Remote On/Off, Remote Sense |
| Packaging | Tray |
| Package / Case | 108-LGA Module |
| Size / Dimension | 0.63"" L x 0.47"" W x 0.07"" H (16.0mm x 11.9mm x 1.82mm) |
| Mounting Type | Surface Mount |
| Type | Non-Isolated PoL Module |
| Operating Temperature | -40°C ~ 125°C |
| Applications | ITE (Commercial) |
| Voltage - Input (Max) | 5.75V |
| Approval Agency | - |
| Efficiency | - |
| Current - Output (Max) | 17A |
| Supplier Device Package | 108-LGA (16x11.9) |
| Voltage - Input (Min) | 4.5V |
| Voltage - Output 1 | 0.5 ~ 3.6V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Control Features | - |
| Number of Outputs | 1 |
| Standard Number | - |
