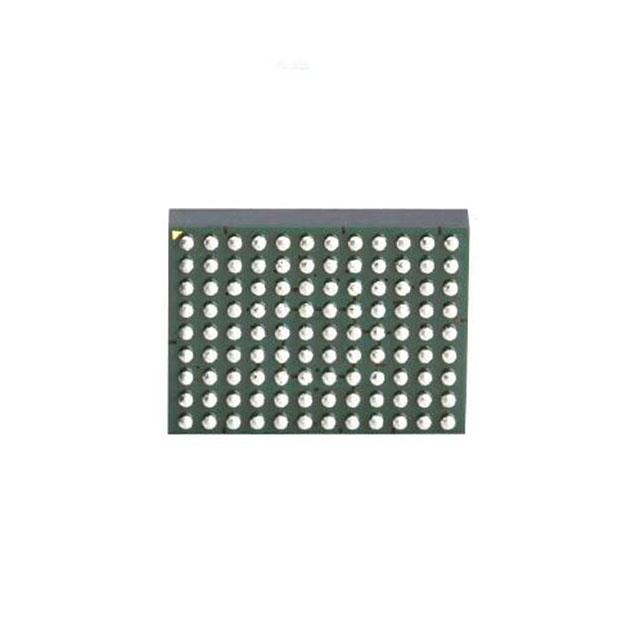

LTM4675EY#PBF
DC DC CNVRTR 0.5-5.5V 0.5-5.5VManufacturer: Analog Devices Inc.
Categories: DC DC Converters
Quality Control: Learn More
Analog Devices Inc. LTM4675EY-PBF is a non-isolated Point-of-Load (PoL) DC-DC converter from the µModule® series. This dual-output module provides adjustable voltages from 0.5V to 5.5V on each output, with a maximum output current of 9A per channel. The input voltage range is 4.5V to 17V. Key features include Overcurrent Protection (OCP), Overtemperature Protection (OTP), Overvoltage Protection (OVP), Short-Circuit Protection (SCP), and Undervoltage Lockout (UVLO). This surface-mount component is housed in a 108-BGA (16x11.9) package with dimensions of 16.0mm x 12.0mm x 3.5mm and is supplied in trays. The LTM4675EY-PBF is suitable for Information Technology Equipment (ITE) applications.
Additional Information
Series: µModule®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 39 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | OCP, OTP, OVP, SCP, UVLO |
| Packaging | Tray |
| Package / Case | 108-BBGA Module |
| Size / Dimension | 0.63"" L x 0.47"" W x 0.14"" H (16.0mm x 12.0mm x 3.5mm) |
| Mounting Type | Surface Mount |
| Type | Non-Isolated PoL Module |
| Operating Temperature | -40°C ~ 125°C |
| Applications | ITE (Commercial) |
| Voltage - Input (Max) | 17V |
| Efficiency | - |
| Current - Output (Max) | 9A, 9A |
| Supplier Device Package | 108-BGA (16x11.9) |
| Voltage - Input (Min) | 4.5V |
| Voltage - Output 1 | 0.5 ~ 5.5V |
| Voltage - Output 2 | 0.5 ~ 5.5V |
| Voltage - Output 3 | - |
| Number of Outputs | 2 |
