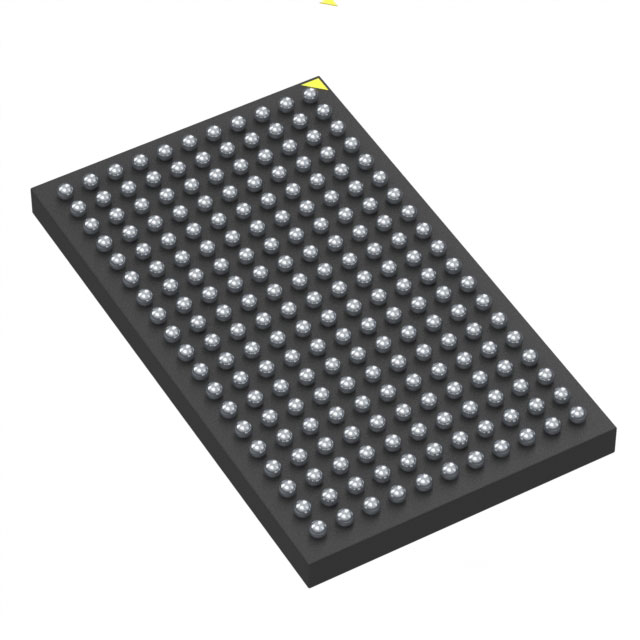

LTM4671EY#PBF
DC DC CONVERTER 2X3.3V 2X5.5VManufacturer: Analog Devices Inc.
Categories: DC DC Converters
Quality Control: Learn More
The Analog Devices Inc. LTM4671EY-PBF is a non-isolated Point-of-Load DC-DC converter from the LTM®, uModule® series. This compact, surface-mount module features four configurable outputs: two adjustable from 0.6V to 3.3V, and two adjustable from 0.6V to 5.5V. Each output supports a maximum current of 12A for the first two and 5A for the latter two, with a wide input voltage range of 3.1V to 20V. Key features include adjustable output voltage and remote sensing capabilities. The module's dimensions are 16.0mm x 9.5mm x 4.9mm, housed in a 209-BGA package. This component is typically utilized in ITE (Commercial) applications and operates within an ambient temperature range of -40°C to 125°C.
Additional Information
Series: LTM®, uModule®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 39 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Adjustable Output, Remote Sense |
| Packaging | Tray |
| Package / Case | 209-BFBGA Module |
| Size / Dimension | 0.63"" L x 0.37"" W x 0.19"" H (16.0mm x 9.5mm x 4.9mm) |
| Mounting Type | Surface Mount |
| Type | Non-Isolated PoL Module |
| Operating Temperature | -40°C ~ 125°C |
| Applications | ITE (Commercial) |
| Voltage - Input (Max) | 20V |
| Approval Agency | - |
| Efficiency | - |
| Current - Output (Max) | 12A, 12A, 5A, 5A |
| Supplier Device Package | 209-BGA (16x9.5) |
| Voltage - Input (Min) | 3.1V |
| Voltage - Output 1 | 0.6 ~ 3.3V |
| Voltage - Output 2 | 0.6 ~ 3.3V |
| Voltage - Output 3 | 0.6 ~ 5.5V |
| Voltage - Output 4 | 0.6 ~ 5.5V |
| Control Features | - |
| Number of Outputs | 4 |
| Standard Number | - |
