LTM4668EY#PBF
DC DC CNVRTR 4X0.6-1.8VManufacturer: Analog Devices Inc.
Categories: DC DC Converters
Quality Control: Learn More

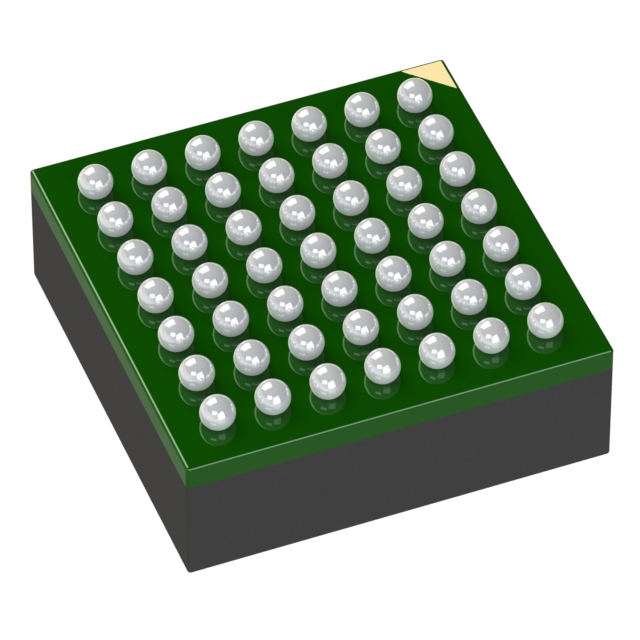

Analog Devices Inc. LTM4668EY-PBF is a non-isolated Point-of-Load (PoL) DC-DC converter from the µModule® series. This compact 49-BGA (6.25x6.25) module, measuring 6.3mm x 6.3mm x 2.3mm, integrates a controller, MOSFETs, a shielded inductor, and supporting components. It features four independent outputs, each capable of delivering a configurable voltage from 0.6V to 1.8V with a maximum output current of 1.2A per output. The device operates from an input voltage range of 2.7V to 17V and is designed for surface mount applications. The LTM4668EY-PBF is suitable for ITE (Commercial) applications. The operating temperature range is -40°C to 125°C.
Additional Information
Series: µModule®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 33 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Package / Case | 49-FBGA Module |
| Size / Dimension | 0.25"" L x 0.25"" W x 0.09"" H (6.3mm x 6.3mm x 2.3mm) |
| Mounting Type | Surface Mount |
| Type | Non-Isolated PoL Module |
| Operating Temperature | -40°C ~ 125°C |
| Applications | ITE (Commercial) |
| Voltage - Input (Max) | 17V |
| Approval Agency | - |
| Efficiency | - |
| Current - Output (Max) | 1.2A, 1.2A, 1.2A, 1.2A |
| Supplier Device Package | 49-BGA (6.25x6.25) |
| Voltage - Input (Min) | 2.7V |
| Voltage - Output 1 | 0.6 ~ 1.8V |
| Voltage - Output 2 | 0.6 ~ 1.8V |
| Voltage - Output 3 | 0.6 ~ 1.8V |
| Voltage - Output 4 | 0.6 ~ 1.8V |
| Control Features | - |
| Number of Outputs | 4 |
