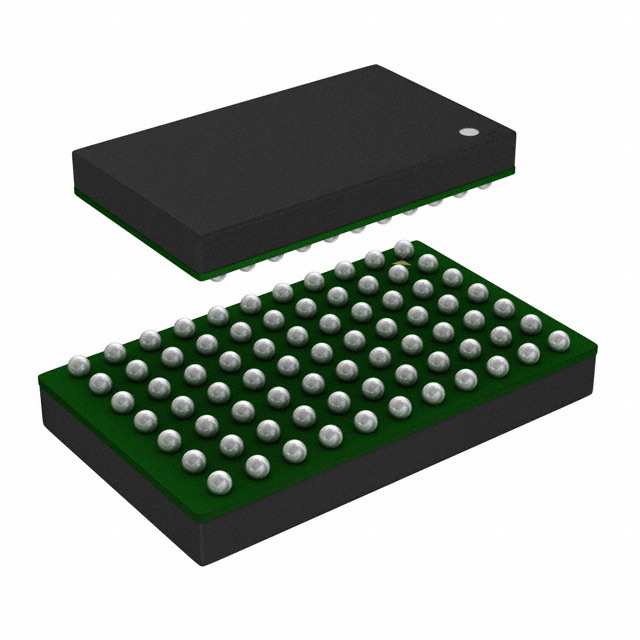

LTM4645IY
IC REG BUCK ADJUSTABLE 25A 77BGAManufacturer: Analog Devices Inc.
Categories: DC DC Converters
Quality Control: Learn More
Analog Devices Inc. LTM4645IY is a non-isolated point-of-load DC-DC converter. This module features a single output with an adjustable voltage range from 0.6V to 1.8V and a maximum output current of 25A. The input voltage range for this device is 4.7V to 15V, with an efficiency of 86%. Key features include adjustable output and remote sense capabilities. The LTM4645IY is supplied in a 77-BGA (15x9) package for surface mounting and operates within an ambient temperature range of -40°C to 125°C. Its dimensions are 15.0mm x 9.0mm x 3.5mm. This component is commonly utilized in ITE (Commercial) applications.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Adjustable Output, Remote Sense |
| Packaging | Bulk |
| Package / Case | 77-BBGA Module |
| Size / Dimension | 0.59"" L x 0.35"" W x 0.14"" H (15.0mm x 9.0mm x 3.5mm) |
| Mounting Type | Surface Mount |
| Type | Non-Isolated PoL Module |
| Operating Temperature | -40°C ~ 125°C |
| Applications | ITE (Commercial) |
| Voltage - Input (Max) | 15V |
| Approval Agency | - |
| Efficiency | 86% |
| Current - Output (Max) | 25A |
| Supplier Device Package | 77-BGA (15x9) |
| Voltage - Input (Min) | 4.7V |
| Voltage - Output 1 | 0.6 ~ 1.8V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Control Features | - |
| Number of Outputs | 1 |
| Standard Number | - |
