LTM4625IY#PBF
DC DC CONVERTER 0.6-5.5VManufacturer: Analog Devices Inc.
Categories: DC DC Converters
Quality Control: Learn More

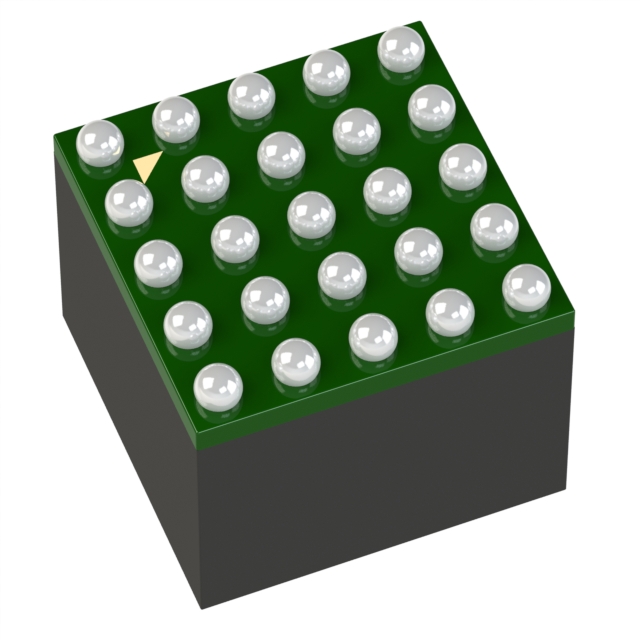

The Analog Devices Inc. µModule® LTM4625IY-PBF is a non-isolated point-of-load DC-DC converter. This surface-mount device delivers a single output voltage adjustable from 0.6V to 5.5V with a maximum output current of 5A. It operates from an input voltage range of 4V to 20V, exhibiting up to 91% efficiency. Key protective features include overcurrent protection (OCP), overtemperature protection (OTP), overvoltage protection (OVP), and undervoltage lockout (UVLO). The component is housed in a 25-BGA (6.25x6.25) package, measuring 6.3mm x 6.3mm x 5.0mm, and is supplied in trays. This µModule® converter is suitable for ITE (Commercial) applications.
Additional Information
Series: µModule®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 39 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | OCP, OTP, OVP, UVLO |
| Packaging | Tray |
| Package / Case | 25-PowerBBGA Module |
| Size / Dimension | 0.25"" L x 0.25"" W x 0.20"" H (6.3mm x 6.3mm x 5.0mm) |
| Mounting Type | Surface Mount |
| Type | Non-Isolated PoL Module |
| Operating Temperature | -40°C ~ 125°C |
| Applications | ITE (Commercial) |
| Voltage - Input (Max) | 20V |
| Efficiency | 91% |
| Current - Output (Max) | 5A |
| Supplier Device Package | 25-BGA (6.25x6.25) |
| Voltage - Input (Min) | 4V |
| Voltage - Output 1 | 0.6 ~ 5.5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Number of Outputs | 1 |
