LTM4614EV#PBF
DC DC CONVERTER 0.8-5V 0.8-5VManufacturer: Analog Devices Inc.
Categories: DC DC Converters
Quality Control: Learn More

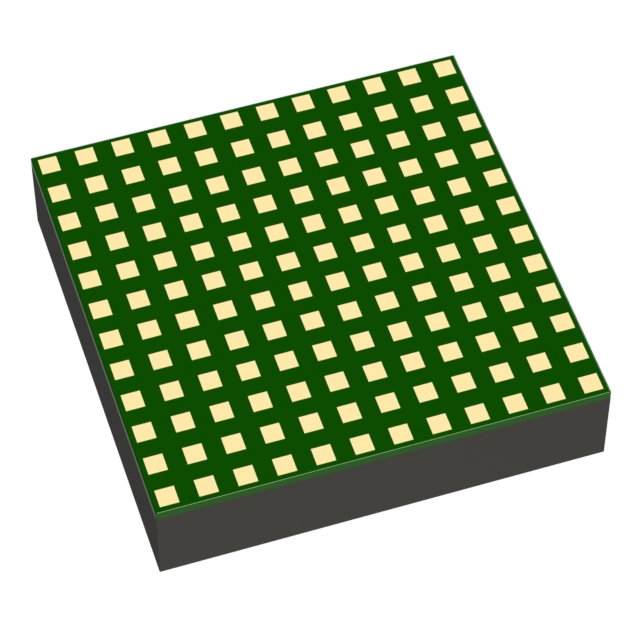

Analog Devices Inc. LTM4614EV-PBF is a non-isolated Point-of-Load (PoL) DC-DC converter from the µModule® series. This surface-mount module features dual outputs, each capable of delivering up to 4A. The output voltage is configurable from 0.8V to 5V for both channels. Input voltage range is 2.38V to 5.5V, with a maximum input voltage of 5.5V. The module boasts up to 95% efficiency and operates across a wide temperature range of -40°C to 125°C. Its compact footprint, measuring 0.59" x 0.59" x 0.11" (15.0mm x 15.0mm x 2.8mm), is housed in a 144-LGA package. This component is well-suited for applications in the ITE (Commercial) industry.
Additional Information
Series: µModule®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Package / Case | 144-BLGA Module |
| Size / Dimension | 0.59"" L x 0.59"" W x 0.11"" H (15.0mm x 15.0mm x 2.8mm) |
| Mounting Type | Surface Mount |
| Type | Non-Isolated PoL Module |
| Operating Temperature | -40°C ~ 125°C |
| Applications | ITE (Commercial) |
| Voltage - Input (Max) | 5.5V |
| Efficiency | 95% |
| Current - Output (Max) | 4A, 4A |
| Supplier Device Package | 144-LGA (15x15) |
| Voltage - Input (Min) | 2.38V |
| Voltage - Output 1 | 0.8 ~ 5V |
| Voltage - Output 2 | 0.8 ~ 5V |
| Voltage - Output 3 | - |
| Number of Outputs | 2 |
