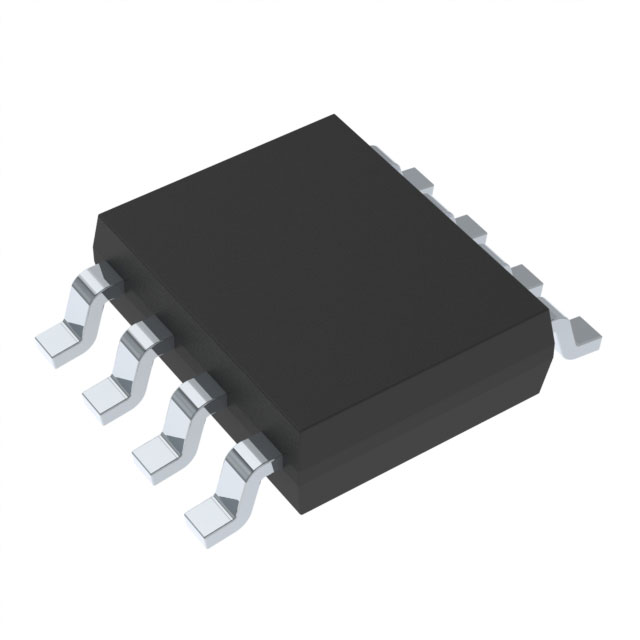

ADUM5028-5BRIZ
DC DC CONVERTER 3.3V 5V 300MWManufacturer: Analog Devices Inc.
Categories: DC DC Converters
Quality Control: Learn More
Isolated Module DC DC Converter 1 Output 3.3V, 5V 60mA 4.5V - 5.5V Input
Additional Information
Series: IsoPower®, iCoupler®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | OTP, UVLO |
| Packaging | Tube |
| Package / Case | 8-SOIC (0.295"", 7.50mm Width) |
| Size / Dimension | 0.23"" L x 0.30"" W x 0.10"" H (5.9mm x 7.5mm x 2.7mm) |
| Mounting Type | Surface Mount |
| Type | Isolated Module |
| Operating Temperature | -40°C ~ 125°C |
| Applications | ITE (Commercial) |
| Voltage - Input (Max) | 5.5V |
| Approval Agency | - |
| Efficiency | 33% |
| Current - Output (Max) | 60mA |
| Supplier Device Package | 8-SOIC-IC |
| Voltage - Input (Min) | 4.5V |
| Voltage - Output 1 | 3.3V, 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Number of Outputs | 1 |
| Voltage - Isolation | 3 kV |
Request a Quote
