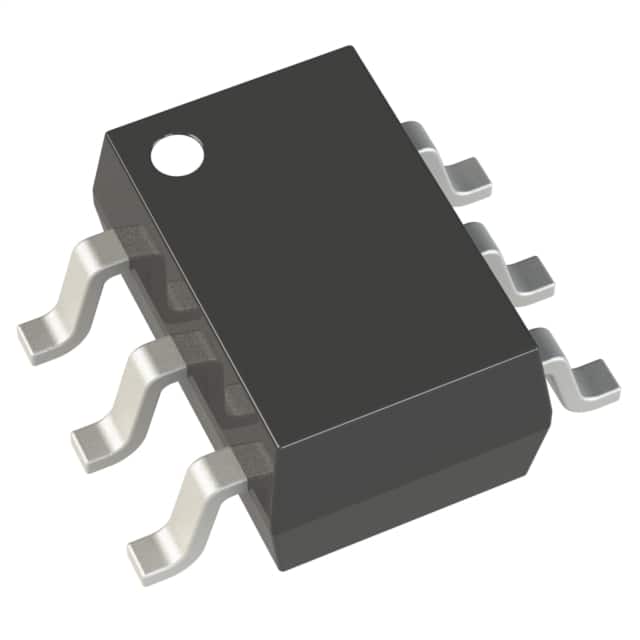

LTC6754ISC6#TRPBF
IC COMPARATOR 1 GEN PUR SC70-6Manufacturer: Analog Devices Inc.
Categories: Comparators
Quality Control: Learn More
The Analog Devices Inc. LTC6754ISC6-TRPBF is a single-element, general-purpose comparator featuring LVDS output. This component offers a low input bias current of 1.5µA maximum and a propagation delay of 2.8ns maximum. It operates over a temperature range of -40°C to 85°C and supports single or dual supply voltages from 2.4V to 5.25V. The device exhibits typical CMRR and PSRR of 77dB and 80dB respectively, with a maximum input offset voltage of 4mV at 5V. The SC-70-6 package is supplied on tape and reel. This comparator is suitable for applications in industrial and automotive sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Output Type | LVDS |
| Mounting Type | Surface Mount |
| Number of Elements | 1 |
| Type | General Purpose |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Single/Dual (±) | 2.4V ~ 5.25V |
| Supplier Device Package | SC-70-6 |
| Propagation Delay (Max) | 2.8ns |
| Current - Quiescent (Max) | 14.7mA |
| Voltage - Input Offset (Max) | 4mV @ 5V |
| Current - Input Bias (Max) | 1.5µA |
| Current - Output (Typ) | 11mA |
| CMRR, PSRR (Typ) | 77dB CMRR, 80dB PSRR |
| Hysteresis | 4.5mV |
