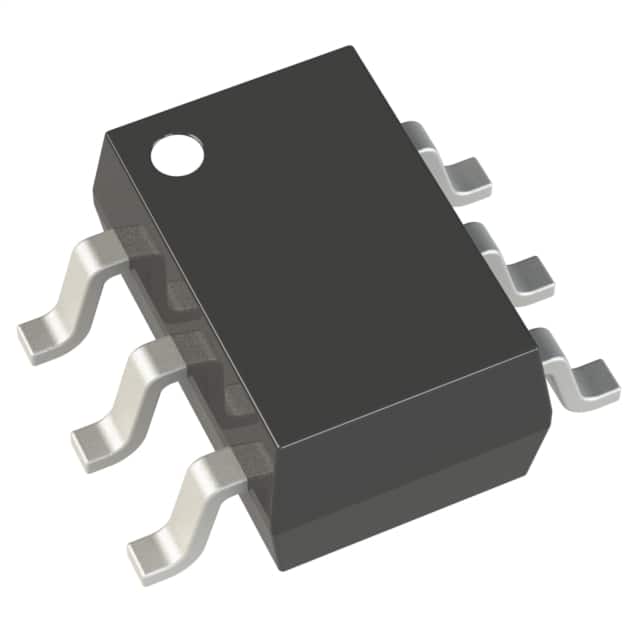

LTC6754ISC6#TRMPBF
IC COMPARATOR 1 GEN PUR SC70-6Manufacturer: Analog Devices Inc.
Categories: Comparators
Quality Control: Learn More
The Analog Devices Inc. LTC6754ISC6-TRMPBF is a single-element, general-purpose comparator designed for high-speed applications. Featuring LVDS outputs, this component offers a low input bias current of 1.5µA maximum and a quiescent current of 14.7mA maximum. The device exhibits excellent common-mode rejection (77dB typical) and power supply rejection (80dB typical), coupled with a low input offset voltage of 4mV maximum at 5V. Its hysteresis is 4.5mV, and the propagation delay is a maximum of 2.8ns. Operating over a temperature range of -40°C to 85°C, it is supplied in a SC-70-6 package and is available on tape and reel. This comparator is suitable for use in telecommunications infrastructure, industrial automation, and high-performance computing.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Output Type | LVDS |
| Mounting Type | Surface Mount |
| Number of Elements | 1 |
| Type | General Purpose |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Single/Dual (±) | 2.4V ~ 5.25V |
| Supplier Device Package | SC-70-6 |
| Propagation Delay (Max) | 2.8ns |
| Current - Quiescent (Max) | 14.7mA |
| Voltage - Input Offset (Max) | 4mV @ 5V |
| Current - Input Bias (Max) | 1.5µA |
| Current - Output (Typ) | 11mA |
| CMRR, PSRR (Typ) | 77dB CMRR, 80dB PSRR |
| Hysteresis | 4.5mV |
