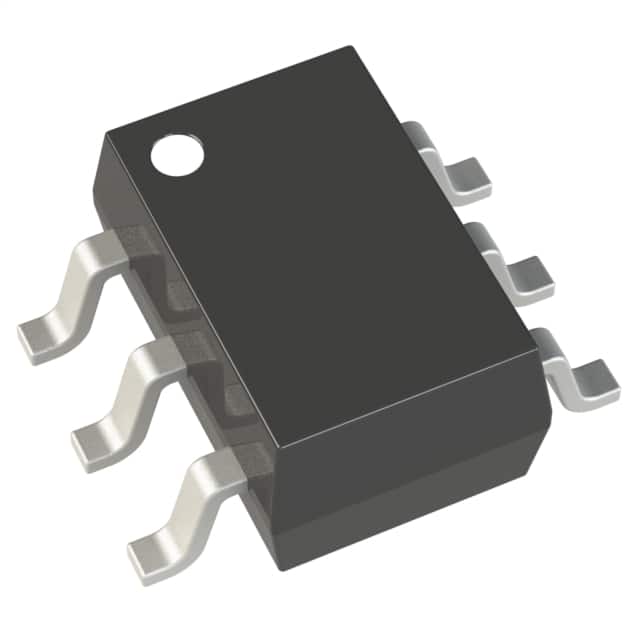

LTC6754HSC6#TRPBF
IC COMPARATOR 1 GEN PUR SC70-6Manufacturer: Analog Devices Inc.
Categories: Comparators
Quality Control: Learn More
Analog Devices Inc. LTC6754HSC6-TRPBF is a high-speed, general-purpose comparator featuring LVDS outputs. This single-element device offers a propagation delay of 2.8ns maximum and a wide operating temperature range of -40°C to 125°C. Key specifications include an input bias current of 1.5µA maximum and an output current of 11mA typical. The comparator exhibits excellent common-mode rejection ratio (CMRR) of 77dB and power supply rejection ratio (PSRR) of 80dB. It operates from a single or dual supply voltage from 2.4V to 5.25V. The device is supplied in a SC-70-6 package, suitable for surface mount applications. Industries such as telecommunications, industrial automation, and data acquisition systems commonly utilize components with these characteristics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 33 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Output Type | LVDS |
| Mounting Type | Surface Mount |
| Number of Elements | 1 |
| Type | General Purpose |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply, Single/Dual (±) | 2.4V ~ 5.25V |
| Supplier Device Package | SC-70-6 |
| Propagation Delay (Max) | 2.8ns |
| Current - Quiescent (Max) | 14.7mA |
| Voltage - Input Offset (Max) | 4mV @ 5V |
| Current - Input Bias (Max) | 1.5µA |
| Current - Output (Typ) | 11mA |
| CMRR, PSRR (Typ) | 77dB CMRR, 80dB PSRR |
| Hysteresis | 4.5mV |
