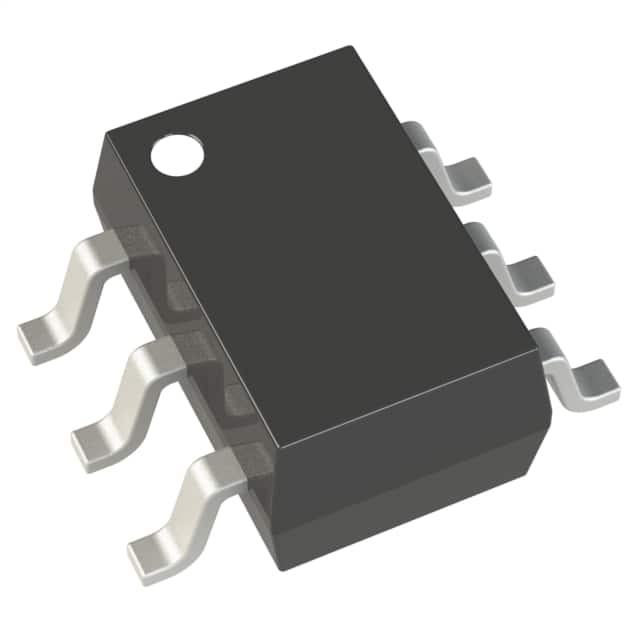

LTC6754HSC6#TRMPBF
IC COMPARATOR 1 GEN PUR SC70-6Manufacturer: Analog Devices Inc.
Categories: Comparators
Quality Control: Learn More
Analog Devices Inc. LTC6754HSC6-TRMPBF is a single-element, general-purpose comparator featuring LVDS outputs. This component offers a fast propagation delay of 2.8ns (max) and operates over a wide temperature range of -40°C to 125°C. Key electrical characteristics include a low input bias current of 1.5µA (max), a typical output current of 11mA, and a quiescent current of 14.7mA (max). Input offset voltage is rated at 4mV (max) at 5V, with a hysteresis of 4.5mV. The device supports single or dual supply voltages from 2.4V to 5.25V. It boasts high common-mode rejection ratio (CMRR) of 77dB and power supply rejection ratio (PSRR) of 80dB. Supplied in a compact SC-70-6 package (SOT-363), the LTC6754HSC6-TRMPBF is suitable for applications in high-speed data acquisition, industrial control systems, and medical instrumentation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 33 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Output Type | LVDS |
| Mounting Type | Surface Mount |
| Number of Elements | 1 |
| Type | General Purpose |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply, Single/Dual (±) | 2.4V ~ 5.25V |
| Supplier Device Package | SC-70-6 |
| Propagation Delay (Max) | 2.8ns |
| Current - Quiescent (Max) | 14.7mA |
| Voltage - Input Offset (Max) | 4mV @ 5V |
| Current - Input Bias (Max) | 1.5µA |
| Current - Output (Typ) | 11mA |
| CMRR, PSRR (Typ) | 77dB CMRR, 80dB PSRR |
| Hysteresis | 4.5mV |
