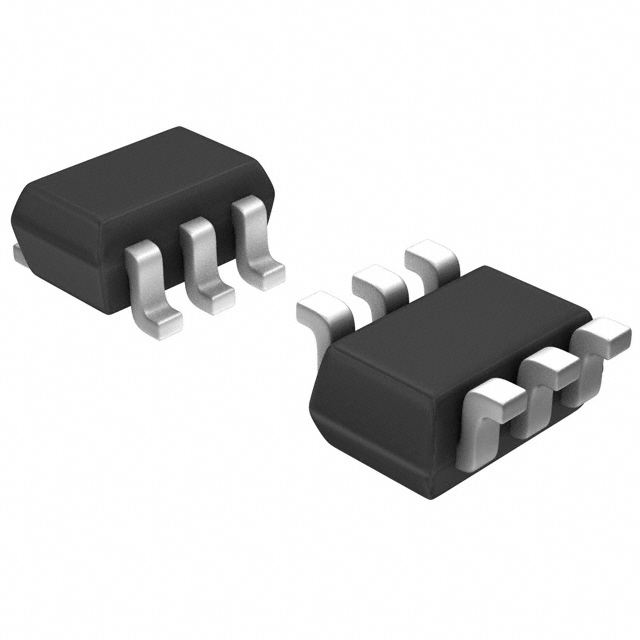

LTC6752HSC6-4
IC COMPARATOR 1 GEN PUR SC70-6Manufacturer: Analog Devices Inc.
Categories: Comparators
Quality Control: Learn More
Analog Devices Inc. LTC6752HSC6-4 is a single-channel, general-purpose CMOS comparator with a typical propagation delay of 5.3ns. This device operates over a voltage supply range of 2.45V to 5.25V, featuring a low input bias current of 1.6µA at 5V and a quiescent current of 2.65mA maximum. The comparator exhibits excellent power supply rejection ratio (PSRR) of 75dB and common-mode rejection ratio (CMRR) of 70dB. It includes a minimal 5.2mV hysteresis. The LTC6752HSC6-4 is housed in a compact SC-70-6 surface-mount package, making it suitable for space-constrained applications. This component finds utility in various industrial and consumer electronics sectors requiring precise signal comparison. The output type is CMOS, and the operating temperature range is -40°C to 125°C.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Output Type | CMOS |
| Mounting Type | Surface Mount |
| Number of Elements | 1 |
| Type | General Purpose |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply, Single/Dual (±) | 2.45V ~ 5.25V |
| Supplier Device Package | SC-70-6 |
| Propagation Delay (Max) | 5.3ns |
| Current - Quiescent (Max) | 2.65mA |
| Voltage - Input Offset (Max) | 5.5mV @ 5V |
| Current - Input Bias (Max) | 1.6µA @ 5V |
| Current - Output (Typ) | 19mA @ 5V |
| CMRR, PSRR (Typ) | 70dB CMRR, 75dB PSRR |
| Hysteresis | 5.2mV |
