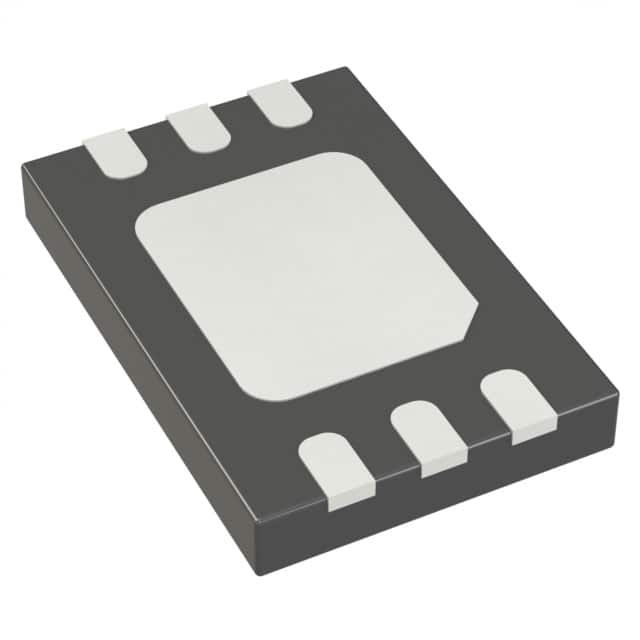

LT6700IDCB-3#TRPBF
IC COMPARATOR 2 W/VOLT REF 6DFNManufacturer: Analog Devices Inc.
Categories: Comparators
Quality Control: Learn More
The Analog Devices Inc. LT6700IDCB-3-TRPBF is a dual-channel comparator from the Over-The-Top® series. This component features an integrated voltage reference and offers an open-collector output. Designed for surface mount applications, it is supplied in a 6-DFN (2x3) package on tape and reel. The device operates from a wide supply voltage range of 1.4V to 18V, with a low quiescent current of 17µA maximum. Input bias current is specified at 0.01µA at 18V, and the comparator exhibits 11.5mV of hysteresis. Propagation delay is 29µs maximum. This component is suitable for use in industrial, automotive, and consumer electronics applications requiring precise voltage monitoring and threshold detection.
Additional Information
Series: Over-The-Top®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-WFDFN Exposed Pad |
| Output Type | Open-Collector |
| Mounting Type | Surface Mount |
| Number of Elements | 2 |
| Type | with Voltage Reference |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Single/Dual (±) | 1.4V ~ 18V |
| Supplier Device Package | 6-DFN (2x3) |
| Propagation Delay (Max) | 29µs |
| Current - Quiescent (Max) | 17µA |
| Voltage - Input Offset (Max) | - |
| Current - Input Bias (Max) | 0.01µA @ 18V |
| Current - Output (Typ) | - |
| CMRR, PSRR (Typ) | - |
| Hysteresis | 11.5mV |
