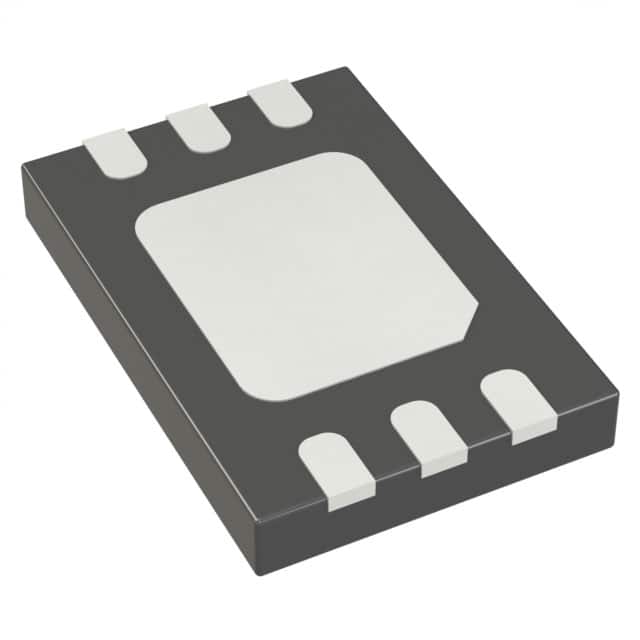

LT6700HDCB-1#TRMPBF
IC COMPARATOR 2 W/VOLT REF 6DFNManufacturer: Analog Devices Inc.
Categories: Comparators
Quality Control: Learn More
Analog Devices Inc. Over-The-Top® series comparator, part number LT6700HDCB-1-TRMPBF, features two independent comparators with an integrated voltage reference. This device operates from a wide supply voltage range of 1.4V to 18V and exhibits a low quiescent current of 19µA (max). The input bias current is rated at 0.01µA (max) at 18V, and the output type is open-collector. With a hysteresis of 13.5mV, the LT6700HDCB-1-TRMPBF offers precise threshold detection. Its propagation delay is a maximum of 29µs. The component is housed in a compact 6-DFN (2x3) exposed pad package, suitable for surface mounting. This device finds application in power management, battery monitoring, and general-purpose analog signal conditioning across various industrial and consumer electronics sectors.
Additional Information
Series: Over-The-Top®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-WFDFN Exposed Pad |
| Output Type | Open-Collector |
| Mounting Type | Surface Mount |
| Number of Elements | 2 |
| Type | with Voltage Reference |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply, Single/Dual (±) | 1.4V ~ 18V |
| Supplier Device Package | 6-DFN (2x3) |
| Propagation Delay (Max) | 29µs |
| Current - Quiescent (Max) | 19µA |
| Voltage - Input Offset (Max) | - |
| Current - Input Bias (Max) | 0.01µA @ 18V |
| Current - Output (Typ) | - |
| CMRR, PSRR (Typ) | - |
| Hysteresis | 13.5mV |
