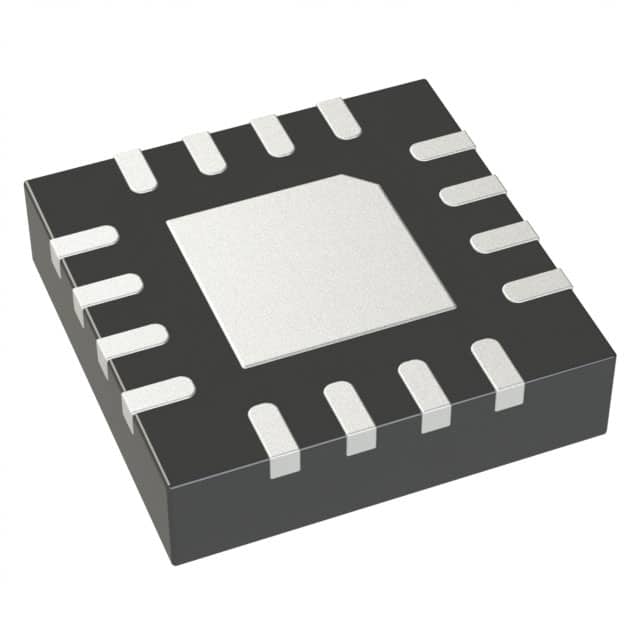

ADCMP580BCPZ-RL7
IC COMPARATOR 1 W/LATCH 16LFCSPManufacturer: Analog Devices Inc.
Categories: Comparators
Quality Control: Learn More
Analog Devices Inc. ADCMP580BCPZ-RL7 is a high-speed comparator featuring a single element with latch functionality. This component offers a propagation delay of 0.18ns maximum and operates with a voltage supply range of ±4.5V to ±5.5V. Key specifications include 1mV of hysteresis, 30µA maximum input bias current, and 44mA typical output current at 5V. The device exhibits 60dB CMRR and 75dB PSRR. Designed for surface mount applications, it is supplied in a 16-LFCSP (3x3) package, presented on tape and reel. This comparator is utilized in industries such as test and measurement, high-speed digital systems, and telecommunications infrastructure.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-WFQFN Exposed Pad, CSP |
| Output Type | CML, Complementary |
| Mounting Type | Surface Mount |
| Number of Elements | 1 |
| Type | with Latch |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply, Single/Dual (±) | ±4.5V ~ 5.5V |
| Supplier Device Package | 16-LFCSP (3x3) |
| Propagation Delay (Max) | 0.18ns |
| Current - Quiescent (Max) | 8mA |
| Voltage - Input Offset (Max) | 10mV @ ±5V |
| Current - Input Bias (Max) | 30µA @ ±5V |
| Current - Output (Typ) | 44mA @ 5V |
| CMRR, PSRR (Typ) | 60dB CMRR, 75dB PSRR |
| Hysteresis | 1mV |
