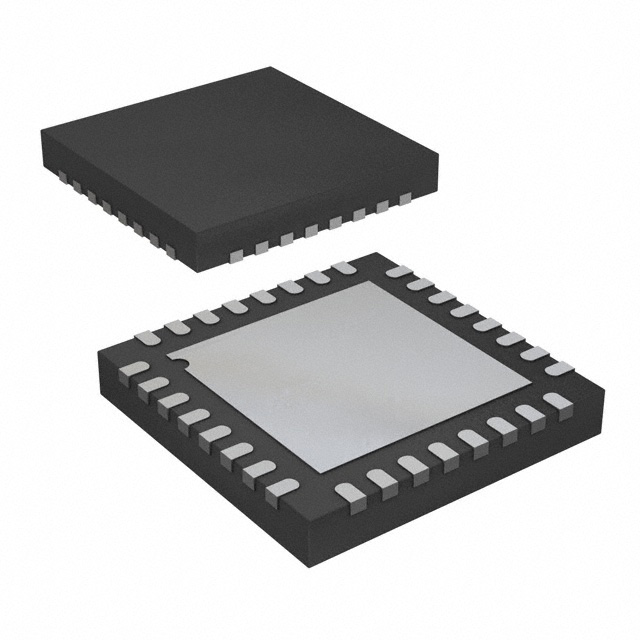

ADCMP567BCPZ
IC COMPARATOR 2 W/LATCH 32LFCSPManufacturer: Analog Devices Inc.
Categories: Comparators
Quality Control: Learn More
Comparator with Latch Complementary, Differential, Open-Emitter, PECL 32-LFCSP (5x5)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 32-VFQFN Exposed Pad, CSP |
| Output Type | Complementary, Differential, Open-Emitter, PECL |
| Mounting Type | Surface Mount |
| Number of Elements | 2 |
| Type | with Latch |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Single/Dual (±) | ±4.75V ~ 5.25V |
| Supplier Device Package | 32-LFCSP (5x5) |
| Propagation Delay (Max) | 0.3ns |
| Current - Quiescent (Max) | 20mA, 95mA, 18mA |
| Voltage - Input Offset (Max) | 5mV @ 5V |
| Current - Input Bias (Max) | 24µA @ 5V |
| Current - Output (Typ) | 30mA |
| CMRR, PSRR (Typ) | 69dB CMRR |
| Hysteresis | ±1mV |
